NOS ignition pickup coil - how bad do you want it?

Collapse
X

  • Time
  • Show
Clear All
new posts
  • LAB3
    XSive Maximus
    • May 2022
    • 677
    • Traveling the U.S. with no permanent address

    #16
    Originally posted by speedlimit85

    If you remove the 3 screws with the pick-up coils on it and just replace that part, then the bolts do not need to be drilled.
    Yeah, that was my thinking too.

    1980 XS1100G

    Intelligent people discuss ideas, average people discuss events, petty people discuss other people.

    Comment

    • DEEBS11
      XS-XJ Guru
      • Feb 2023
      • 1384
      • Connecticut

      #17
      Did you need to use a bolt extractor to remove the old bolt shaft? Was there enough material to grab with vice-grips and unscrew the tamper bolt out?

      Comment

      • speedlimit85
        XStremely XSive
        • Jan 2017
        • 420
        • Gainesville, Fl.

        #18
        I used a drill to remove the heads of the tamper proof bolts and then removed them by hand.
        80 G

        Comment

        • DEEBS11
          XS-XJ Guru
          • Feb 2023
          • 1384
          • Connecticut

          #19
          Thanks speedlimit85, that does not sound too bad.

          Comment

          • speedlimit85
            XStremely XSive
            • Jan 2017
            • 420
            • Gainesville, Fl.

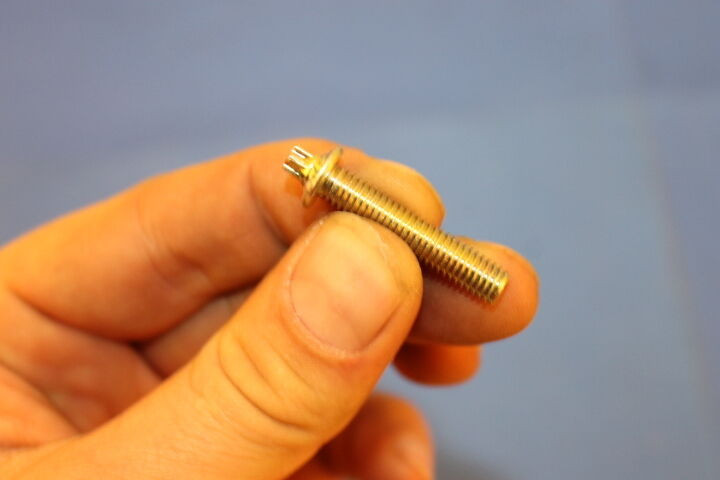

            #20

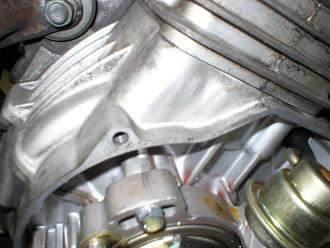

            Click image for larger version

Name:	004.JPG
Views:	255
Size:	148.0 KB

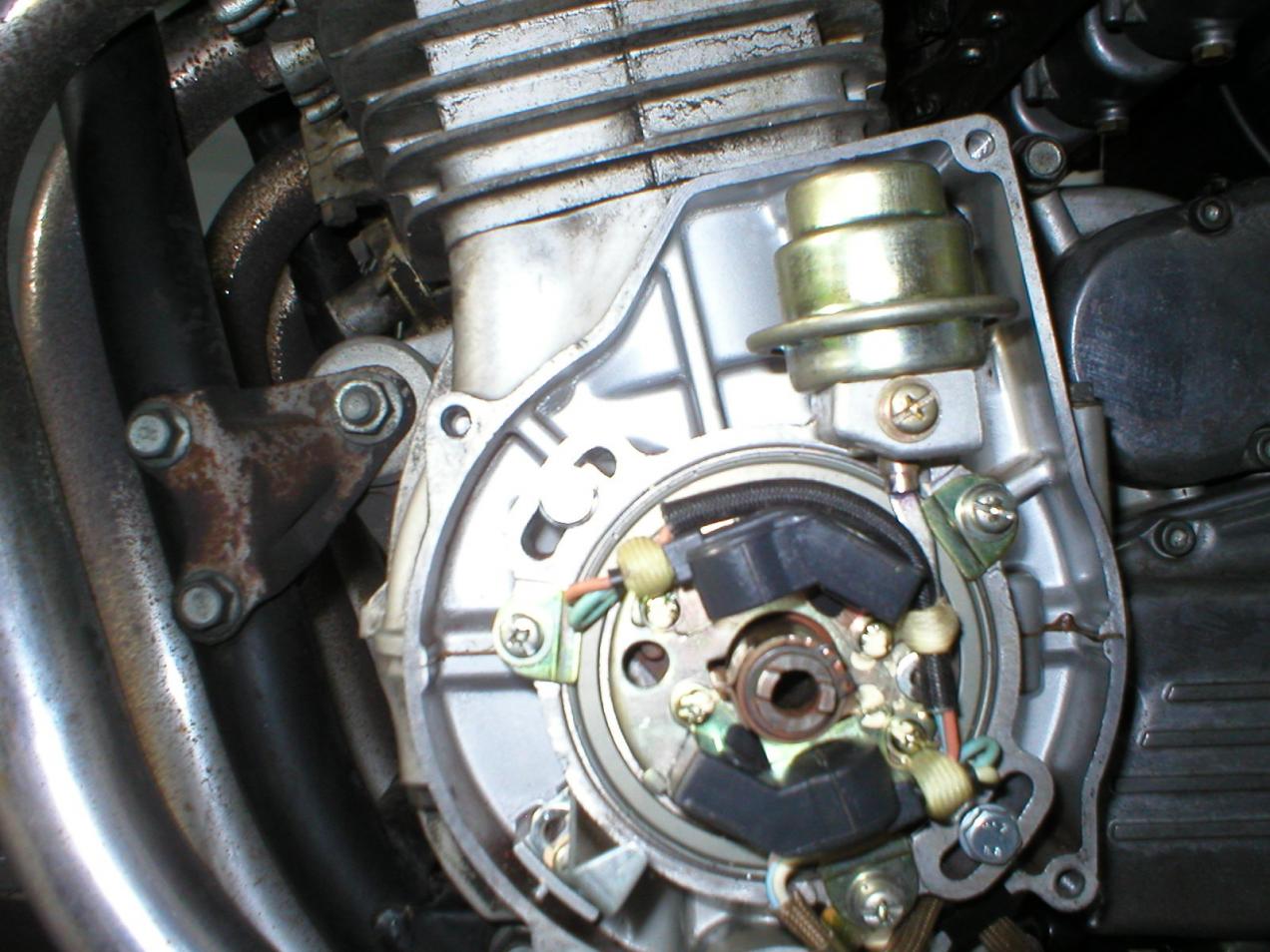

ID:	874299 Click image for larger version

Name:	003.JPG
Views:	249
Size:	121.3 KB
ID:	874298
            80 G

            Comment

            • DEEBS11
              XS-XJ Guru
              • Feb 2023
              • 1384
              • Connecticut

              #21
              Nice shoulder bolt. M8 X 1.25 threads?

              Comment

              • DEEBS11
                XS-XJ Guru
                • Feb 2023
                • 1384
                • Connecticut

                #22
                I found that a 78 has a conventional pan head screw (they must have changed due to dealership warranty issues of customer tampering) part # 97885-06030-00. The middle of the part number states it's a M6 x 30mm length. I'm guessing the thread is 1.25mm.

                Every now and then someone asks what size a particular bolt is. Just thought it would be helpful to post this from another site. FYI, you can get the part# from most Yamaha dealer websites or here. "How to get sizes of bolts from the part numbers... The Yamaha microfiche shows the bolt size, you ...


                Comment

                • DEEBS11
                  XS-XJ Guru
                  • Feb 2023
                  • 1384
                  • Connecticut

                  #23
                  Here is a picture of a 1980 anti-tamper screw. It looks like an M6. Part # 3H5-81674-00-00.

                  Click image for larger version

Name:	s-l960 (6).jpg
Views:	195
Size:	40.0 KB
ID:	874303

                  Comment

                  • bikerphil
                    Master of XSology
                    • Jan 2008
                    • 8629
                    • South Flori-DUH

                    #24
                    The thread pitch on those is 1.0
                    2H7 (79) owned since '89
                    3H3 owned since '06

                    "If it ain't broke, modify it"

                    Comment

                    • DEEBS11
                      XS-XJ Guru
                      • Feb 2023
                      • 1384
                      • Connecticut

                      #25
                      Thank you Phil.

                      Comment

                      • bikerphil
                        Master of XSology
                        • Jan 2008
                        • 8629
                        • South Flori-DUH

                        #26
                        Yep, I used a gauge to double check.
                        2H7 (79) owned since '89
                        3H3 owned since '06

                        "If it ain't broke, modify it"

                        Comment

                        • ellieenby
                          New
                          • May 2024
                          • 1

                          #27
                          Originally posted by LAB3
                          For the money I'd be tempted to go with this.

                          https://www.elektronik-sachse.de/sho...ha-xs1100.html
                          You saved me so many hours of research by posting this link, my project bike had this installed into it and was ripping my hair out looking for where the ignition pick up coils were on my bike. Tysm.

                          Comment

                          • LAB3
                            XSive Maximus
                            • May 2022
                            • 677
                            • Traveling the U.S. with no permanent address

                            #28
                            Originally posted by ellieenby

                            You saved me so many hours of research by posting this link, my project bike had this installed into it and was ripping my hair out looking for where the ignition pick up coils were on my bike. Tysm.
                            I've never used it but have kept it in mind just in case. It was actually another member here asking if anyone tried it out that led me to it.
                            1980 XS1100G

                            Intelligent people discuss ideas, average people discuss events, petty people discuss other people.

                            Comment

                            • Mathh
                              XSive Maximus
                              • Nov 2006
                              • 662
                              • Beek, Netherlands

                              #29
                              Originally posted by DEEBS11
                              Hi LAB, I'm not sure if that unit would survive the environment of heat and cold more that a few years. It has never been tested because there is no documentation other than a sales ad. Maybe it would last. Maybe it wouldn't. The original equipment has lasted up to 45 years. I would spend the money on the real deal.
                              If I remember correctly some of the Australian members use this Sachse unit as do several German members. All without problems and i know it is hot where some of them live. I always found Sachs expensive but comparing it to that NOS part on Ebay I think I changed my mind
                              XS1100 3X0 '82 restomod, 2H9 '78 chain drive racer, 3H3 '79 customized.
                              MV Agusta Brutale 910R '06.
                              Triumph 1200 Speed Trophy '91, Triumph 1200 '93.
                              Z1 '73 restomod, Z1A '74 yellow/green, KZ900 A4 '76 green.
                              Yamaha MT-09 Tracer '15 grey.
                              Kawasaki Z1300 DFI '84 modified, red.

                              Comment

                              • Ccitis
                                Truly XSive
                                • Jun 2023
                                • 138

                                #30
                                Sorry to hijack, but does anyone know the proper gap from the sensor to the part that spins?

                                Comment
