  • Valve shim removal XS11F

    So I'm having a bit of a time getting the "valve shim tool" to do its job. In fact I ordered a second one that has what seems to be more appropriate hole locations for a better alignment. Still no luck. Grrrr. Unless I'm missing something, I just can't see how to line it up properly with the bucket so that it will stay depressed. I will say this is my first attempt at valve shim adjustment so I'm sure my lack of experience is a big factor. It sure seems like it should be straight forward but after searching through the site maybe thats not always the case? So Ive been looking over the thread that crazy steve posted where the cams are removed to change the shims. I'm contemplating this procedure but it scares me a bit. Obviously I don't want to screw things up on reassembly. Is this as straight forward as it seems or can it be a tricky task to perform with absolute success? Any words of wisdom/pointers or encouragement would be strongly welcomed. Please???
    1980 XS1100 SG
    1979 XS1100 F
    1982 XJ 650
    1983 XS 650

  • #2
    It is a bit hard the first time. Some people never do get the tool to work, and others like me use it with no problems.
    1. There is a small notch on the shim bucket. Turn the bucket when there is NO PRESSURE on it so the notch is facing the spark plug.
    2. SLOWLY rotate the engine so the cam lobe pushes down on the bucket. For the exhaust you may have to turn the engine backwards. You will need the tip of the lobe pushing the bucket all the way down.
    3. At this point, install the tool. You may need to push it towards the cam so it will engage the bucket.
    4. Rotate the engine in the opposite direction of the tool to take the cam pressure off the bucket.
    6. With a small flat screw driver or pick, slide it under the shim at the notch and try to lift just a bit.
    7. Now use a magnet to try and catch the edge of the shim, and pull it out.
    To install the new shim:
    1. oil the shim lightly and slide it into the bucket.
    2. Slowly turn the engine so the cam lobe presses the valve fully. BE VERY CAREFUL as you will brake the head if the cam lobe pushes on the tool.
    3. Unbolt and remove the tool.
    4. rotate the engine in the proper direction about two or three times and verify your valve clearance.
    Ray Matteis
    KE6NHG
    XS1100 E '78 (winter project)
    XS1100 SF Bob Jones worked on it!

    Comment


    • #3
      I had to grind the tool so it would get close enough to the shim bucket. I also enlarged the holes slightly.
      2H7 (79)
      3H3

      Comment


      • #4
        I also ground like shown for cam clearance. Instead of enlarging the holes I took a bit off the back side opposite of where it's ground. You know you've got it right when you set it on the gasket surface and when you shift it around a bit it drops into place. Bench grinder is much quicker than a dremel.
        1979 XS1100 Special
        1980 XS1100 Std parts bucket
        1987 ZL1000 Eliminator
        1976 XS750D Project in waiting

        Comment


        • #5
          Ok, I had read about grinding the tool down but I wasn’t quite sure which side and how much. Now I have something to go by. So tomorrow I’ll grind it down and follow diver rays steps. Thanks so much for the input guys. I’ll let you know how it goes.
          1980 XS1100 SG
          1979 XS1100 F
          1982 XJ 650
          1983 XS 650

          Comment


          • #6
            Yeah, I didn't need to grind the tool I have, but I think it's about 18 years old. Probably pre China product.
            Ray Matteis
            KE6NHG
            XS1100 E '78 (winter project)
            XS1100 SF Bob Jones worked on it!

            Comment


            • #7
              BBQ Steve- I hope you can get the valve tool to work instead of removing the cams. One you get the knack of using the tool, it seems ridiculous to consider removing the cams.

              I suspect most folks have the Motion Pro version of the valve tool. It appears to be a cast or forged part.

              I have the original Yamaha tool I bought in 1980. It is a stamped piece with a thinner profile. That must why folks need to grind the Motion Pro version.

              I notice you can buy a stamped version from the UK:

              https://www.ebay.com/itm/VALVE-SHIM-...gAAOSwDaBf3McO

              Good luck.

              -Mike
              _________
              '79 XS1100SF 20k miles
              '80 XS1100SG 42k miles
              '81 XS1100H Venturer 35k miles
              '79 XS750SF 15k miles
              '84 Honda V65 Magna ? miles
              '85 Honda V65 Magna ~7k miles
              '84 Honda V65 Magna 48k miles (parts bike)
              '86 Yamaha VMAX 7k miles

              Previous: '68 Motoguzzi 600cc + '79 XS750SF 22k miles

              Comment


              • #8
                Hey Mike, yeah the second tool I bought seems to be more like the one from the UK. I’m going to grind down the motion pro version today and see if I can get it to work. I may just need to work on my patience! I just don’t want to bugger anything up in the meantime.
                1980 XS1100 SG
                1979 XS1100 F
                1982 XJ 650
                1983 XS 650

                Comment


                • #9
                  Click image for larger version

Name:	16117573300805293740313242892131.jpg
Views:	114
Size:	179.3 KB
ID:	862955 Click image for larger version

Name:	16117573887993117515214119228409.jpg
Views:	113
Size:	154.3 KB
ID:	862956

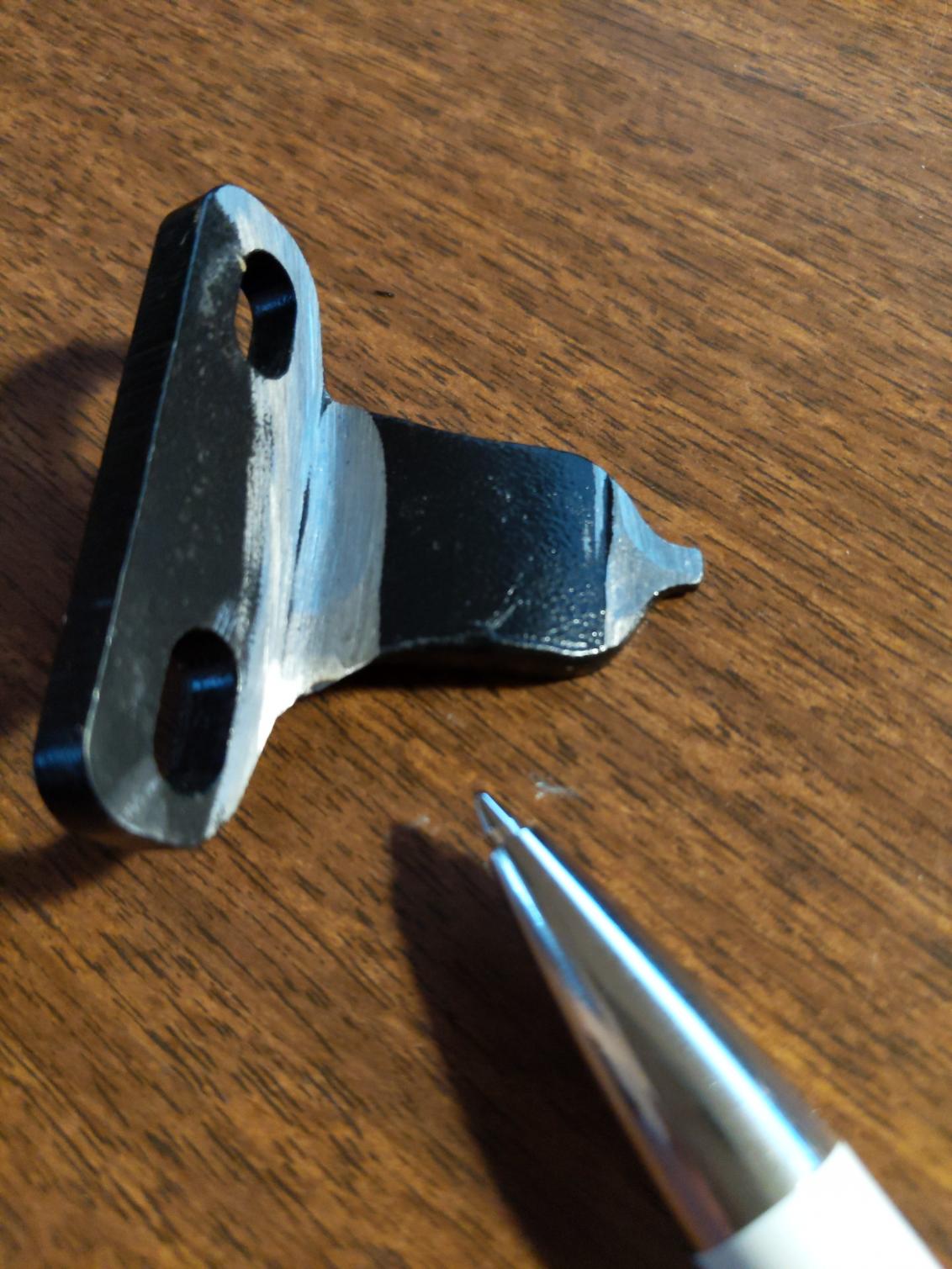

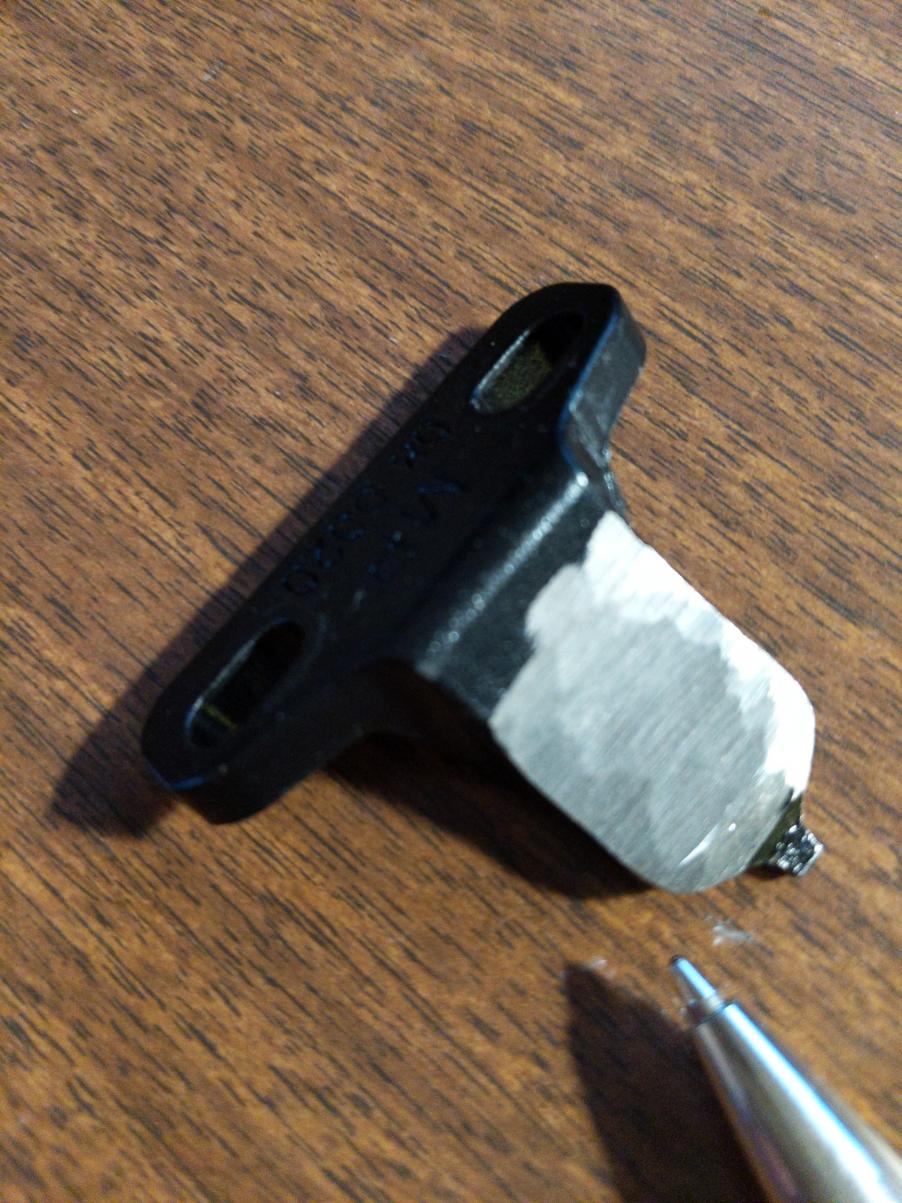

                  Pics of mine that was ground a few days ago. More clearance for cam and took some of the back side of the retainer tab and made more clearance for using the as cast holes.
                  1979 XS1100 Special
                  1980 XS1100 Std parts bucket
                  1987 ZL1000 Eliminator
                  1976 XS750D Project in waiting

                  Comment


                  • #10

                    Comment


                    • #11
                      The yellow one works, the other is crap
                      Rolf from Hamburg, Germany

                      Comment


                      • #12
                        Yeah, look at the tip of each. The yellow one has the tip the thickness of the tool, the other one it's too thin to catch the bucket!
                        Ray Matteis
                        KE6NHG
                        XS1100 E '78 (winter project)
                        XS1100 SF Bob Jones worked on it!

                        Comment


                        • #13
                          Ok so after grinding down one of the tools and several attempts, still no luck. So I threw in the towel and tried the zip tie method. I know it seems a bit controversial but I tried to be super careful and in less than 10 minutes I had two of the three shims out of spec pulled, read and replaced. However the 3rd shim is really stuck in the bucket. I tried a strong pointed little pick and even tapped it a bit with a small hammer but I was worried I might cause damage to the valve? Any suggestions??
                          1980 XS1100 SG
                          1979 XS1100 F
                          1982 XJ 650
                          1983 XS 650

                          Comment


                          • #14
                            Hi BBQRider,
                            I am a big fan of the zip tie method and have used it numerous times on several different engines with great success and never had a problem. I’ve found that tapping with a small flat-blade screwdriver that will fit into the bucket slot works better than a tapping with a pointed pick when struggling to remove stuck shims. Tapping into the base of the slot at the bottom side of the shim should pop it up. Good luck.
                            .
                            Bob

                            LG, Military theme.
                            LH, With XJ maxim tank.
                            1999 Ford Ranger, deceased.

                            Links to my past and current projects:
                            My Bike Projects: https://projectXS11.wordpress.com/
                            My Book Project: https://rucksackgrunt.com/

                            ...

                            Comment


                            • #15
                              I have a Motion Pro tool. It works great. It's unmodified. When I bought mine years ago, people were talking on here about grinding them.
                              Marty (in Mississippi)
                              XS1100SG
                              XS650SK

                              Comment
