  • fitting airbox onto carb bank

    I searched for this topic but came up empty. Apologies if this is well-traveled ground.

    Having owned a few Viragos in my day, I am already familiar with the cruelty and stupidity of Yamaha carb design. But last week I had an episode that made me want to put the bike out at the street for the trash. Over the winter I did a thorough cleaning and renewal of the carbs and cleaning/coating of the fuel tank. Since it's warmer now, I spent Saturday in the garage trying to put everything back together and see if she'll start. No joy.

    I must have spent at least six hours trying to wrestle the carbs onto the boots, the airbox into its tiny space, and then the airbox onto the carbs. It was that last step that brought me to despair. So much so, in fact, that I nearly ordered pod filters, purely out of disgust. The rubber boots on the airbox seem to have become deformed, because they absolutely refuse to go where I tell them.

    I'm looking to have another go at it in a few days. ANY tips or tricks that you folks might offer would be deeply appreciated.

  • #2
    The rubber manifolds are easier when they are warmed up- more pliable. You could use a heat gun on low.I removed my airbox shortly after buying the bike.
    1980 XS1100 SG
    Inline fuel filters
    New wires in old coils-outer spark plugs
    160 mph speedometer mod
    Kerker Exhaust
    xschop K & N air filter setup
    Dynojet Recalibration kit
    1999 Kawasaki ZRX1100
    1997 Jeep Cherokee 4.5"lift installed

    Comment


    • #3
      dont give up.....every xs1100 owner has swore like crazy at the carb design,,,,,,like oldyam said,,,use a hair dryer to soften the boots,,,,also smear some wd40 or vaseline on the inside of the boot and on the carb metal input.....also helps to wiggle one outer carb mostly in,,,then hold it and push the other side in. HEAT AND LUBE will make your life much easier. Pods are easy,,,but many have had issues with tuning. Keep us informed,,,,,welcome to the world of xs1100,,,Mike in San Diego and Pa.

      Comment


      • #4
        Sounds like you got the carbs on the intake manifold boots.

        To get the airbox boots on, I first look at each boot. I don't know if they were all the same when the bike was new, but the boots I have installed are not all the same. The two inner boots are relatively straight. The two outside boots are Z shaped because the airbox openings are spaced more closely than the carb openings.

        So I put the airbox in place without the filter cover and without the filter,... but don't bolt it yet. Stuff the boots into the preferred locations with the clamps over the boots and complelety loosened. Then pull the airbox toward the carbs and wiggle the boots over the carbs as best you can. The wiggle the airbox and get the mounting screws to go in. Usually the boots resist getting the box on place to install the screws. It's OK to let the boots get out of place, and go a little too far into the airbox.

        Then after you get the airbox mounting screws started, you can wiggle the boots into the correct posions and tighten it all up.

        Believe me, it is soooooo much easier than my Honda V65.
        Last edited by Radioguylogs; 03-26-2024, 07:42 PM.
        -Mike
        _________
        '79 XS1100SF 20k miles
        '80 XS1100SG 44k miles
        '81 XS1100H Venturer 35k miles
        '79 XS750SF 17k miles
        '85 Honda V65 Magna ~7k miles
        '84 Honda V65 Magna 48k miles (parts bike)
        '86 Yamaha VMAX 9k miles

        Previous: '68 Motoguzzi 600cc + '79 XS750SF 22k miles +'84 Honda V65

        Comment


        • #5
          Keep in mind there are some tick marks on the boots for the airbox. Make sure they are in the upward position. They look like a little triangle. A hairdryer if you don't have a heat gun to soften up the rubber help as well as a little lube, like carb cleaner to help it on. Also, make sure the clamps are all the way loose and off of the slotted end where they are tightened. Another thing that can help is to shorten the snorkel. They don't need to go that far under the seat to work, but that's optional.
          Owned by a pair of XS11's. An 80 Standard and a 79 Special.

          Comment


          • #6
            Mine must be pliable, I have had the carbs and airbox off tons and never had an issue... I would say mild heat and I spray some contact cleaner on there to lubricate if needed.

            Comment


            • #7

              DaleE, for ease of those carb boots going onto carbs, heat those boots boots up a bit with a hair dryer then spray a bit of silicone lube to inside of boots and slip all that onto carbs with ease.
              81H Venturer1100 "The Bentley" (on steroids) 97 Yamaha YZ250(age reducer) 92 Honda ST1100 "Twisty"(touring rocket) Age is relative to the number of seconds counted 'airing' out an 85ft. table-top.

              Comment


              • #8
                Mike's comment about no filter and lid is very important. Also no clamps. Install those after everything is lined up.

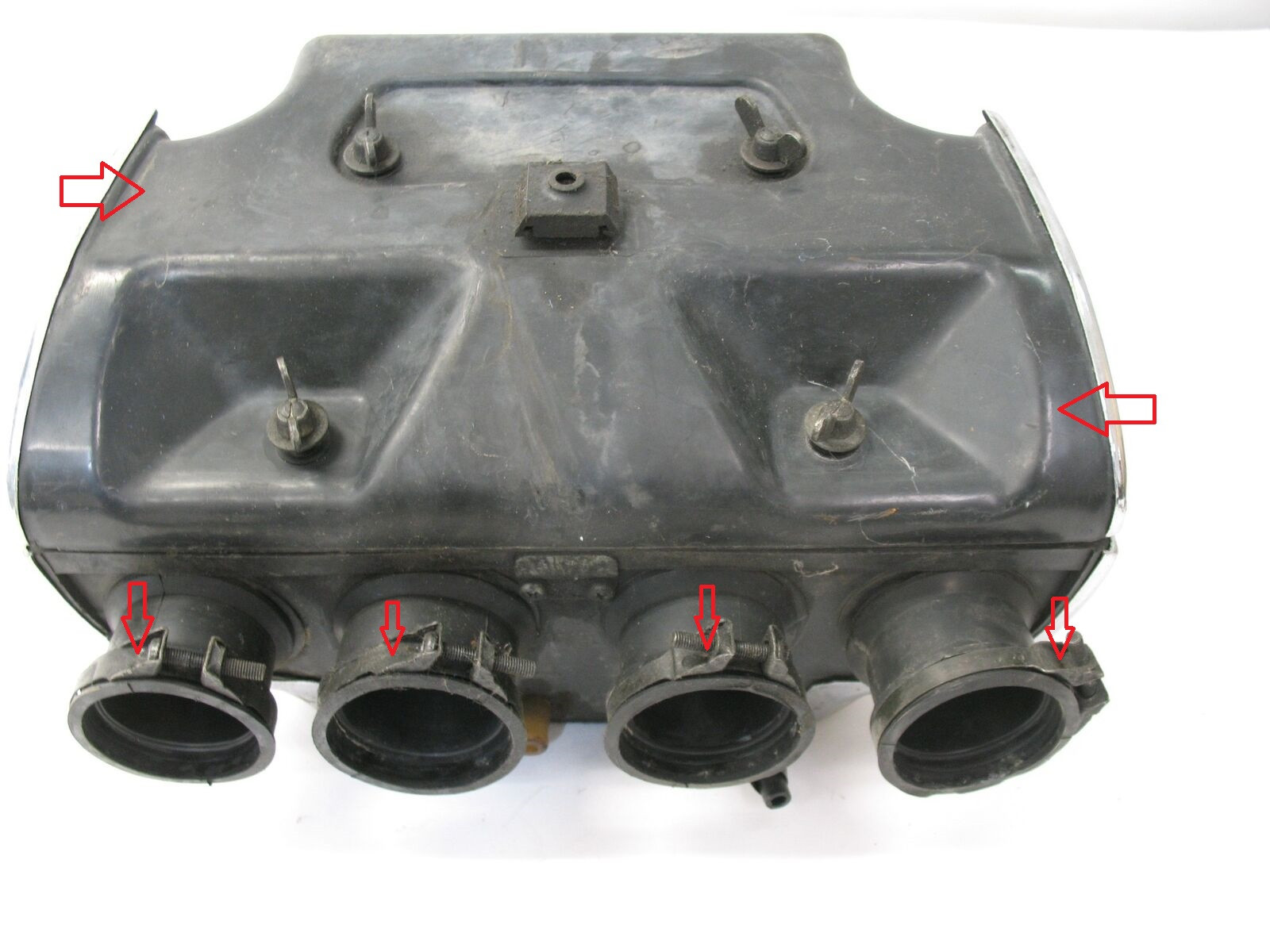

                Click image for larger version
