Idle Mixture Screw
Broken Tip Removal
Several XSives have encountered the broken idle mixture screw syndrome when overhauling carburetors. The tips break off easily in the metering hole when overtightened by overzealous "mechanics". After breaking off, the tip usually remains tightly pressed in place. Removal is essential. The problem is finding a way to apply adequate pressure on the broken tip from inside the carb throat. The "Push Pin Trick" and "Pick Trick" techniques make this possible.
Push Pin Trick
by Ken Talbot
This method uses a push pin and box wrench to push out the broken tip of the idle mixture screw.

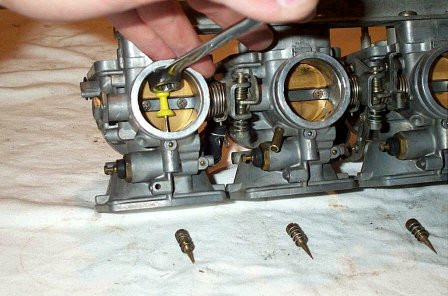

The "Push Pin Trick" method.
Pick Trick
by Bill Kingson

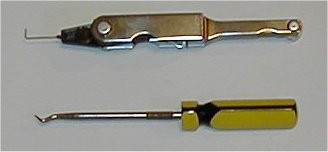

This method uses a mechanic's pick and wire spark plug gauge to push out and clear the broken tip of the idle mixture screw.

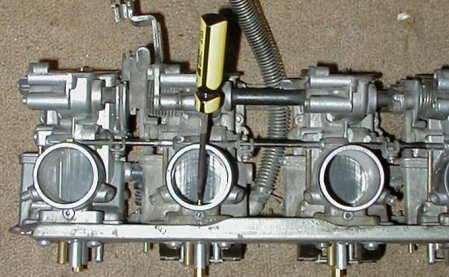

The "Pick Trick" method.
**************************************************
Broken Sewing Needle Trick
by Carlton Riggs/OldNortonRider
Below is an addendum(sorry, no pictures
) to this tech tip.
T.C.
************************************************** *******************************************
I looked in the tech tips and I didn't see anything like this in the broken idle mixture screw removal posts. It works great.
I had 2 broken mixture screws in the carbs from the E I just acquired. After spending a week and using every method and tool I had trying to get them out as I had in other carbs I finally broke down and ordered one of these.

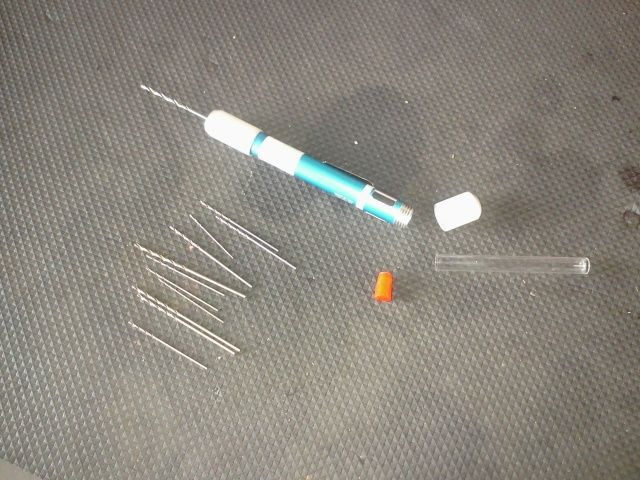

A pin vise drill. The best $30 I've spent in a while.
It took me all of 30 minutes to get those stubborn broken ends out of there!

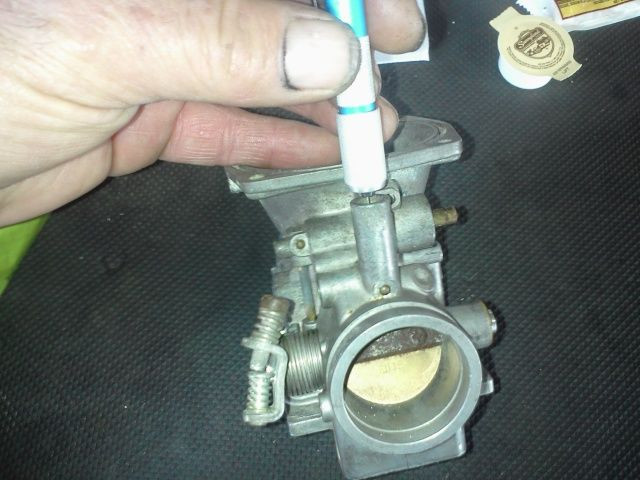

I just chose a bit that fit through the orifice and began to gently drill away at it. The thing is hand operated so it doesn't just rip stuff up.
The aluminum is harder than the brass so it actually acts as a guide for the bit and keeps it digging at the brass and doesn't damage the carb body. When the bit came through inside the venturi the remainder of the tip just fell out.
Just thought you might want to add this to the tech tips.
This is where I ordered mine from but I'm sure there are other places to source them.
http://www.micromark.com/pin-vise-an...-set,7804.html
__________________
Greg
80 SG Ol' Okie
79 SF Traveler II (in progress)
78 E VIN # 2H7 000457 w/full touring package bought from Draketrumpet. Needs a lot of TLC
2 Fs,1 SF,1 SH.....parts.....many, many parts. Oh crap, another SG.
