    Fuse Box Replacement: A Pictorial
    by Xsive Dan/OSEAGHDHA

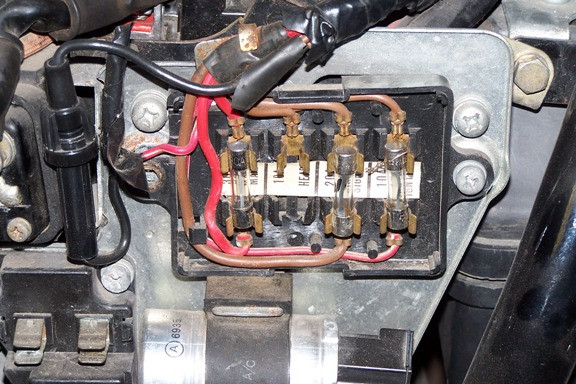

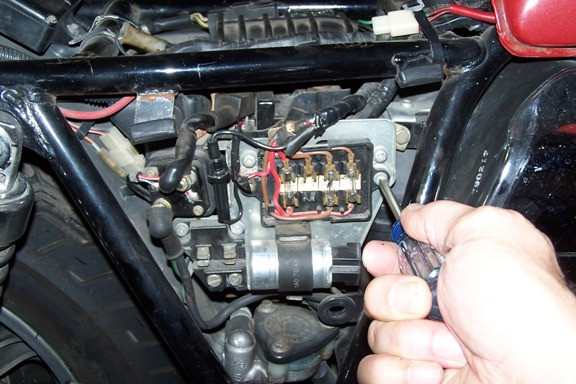

    Anyone ever see this?
    Note the scabbed on inline holder for the headlights and the stripped twist tie holding the ignition fuse. YUCKY.

    Click image for larger version

Name:	fusebox11.jpg
Views:	338
Size:	103.4 KB
ID:	861467

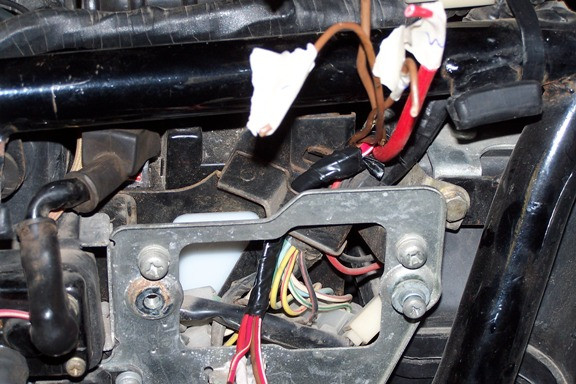

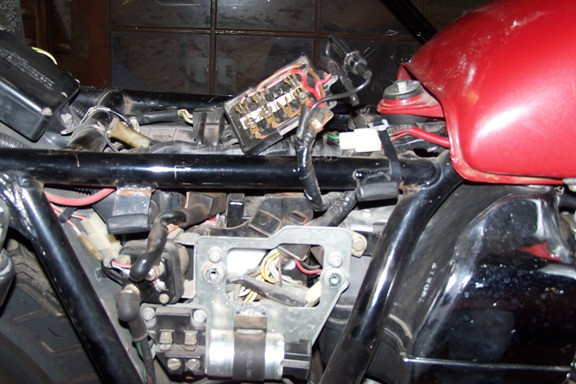

    Step 1: Get it out of there. Two screws and swing it up and out of the way.

    Click image for larger version

Name:	fusebox12.jpg
Views:	282
Size:	89.4 KB
ID:	861468

    Click image for larger version

Name:	fusebox13.jpg
Views:	278
Size:	85.4 KB
ID:	861469


    2. Install TC's fuse box.
    I used a hacksaw to slot the right side. I also notched the top corners to clear the large screws and to get it centered as much as possible top to bottom.

    Click image for larger version

Name:	fusebox14.jpg
Views:	340
Size:	95.2 KB
ID:	861470

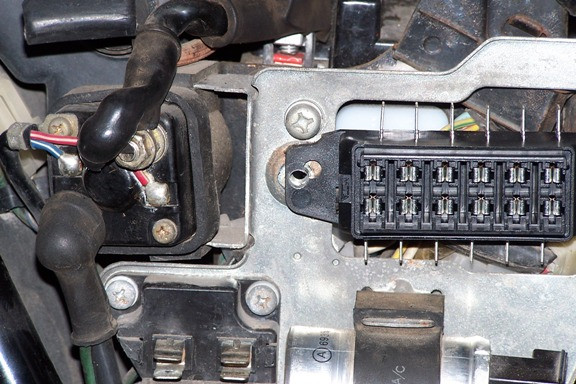

    I center punched for the other hole, and drilled it.
    Flat washers add strength and hide my sloppy work.

    Click image for larger version

Name:	fusebox16.jpg
Views:	299
Size:	95.7 KB
ID:	861471

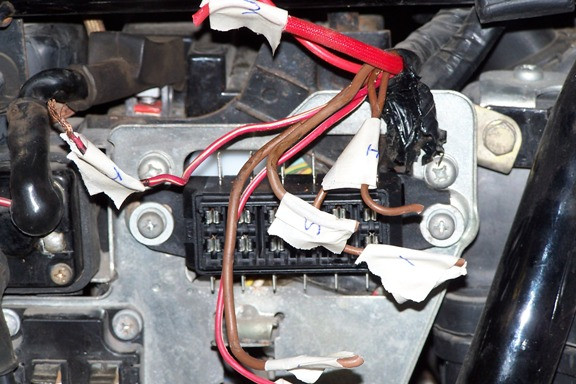

    Cut the wires out of the old box and label them.

    Click image for larger version

Name:	fusebox17.jpg
Views:	325
Size:	87.9 KB
ID:	861472


    I stripped back the tape and separated the top wires from the bottom ones.
    Retape the bottom wires and run them through the metal loop.

    Click image for larger version

Name:	fusebox18.jpg
Views:	304
Size:	92.3 KB
ID:	861473

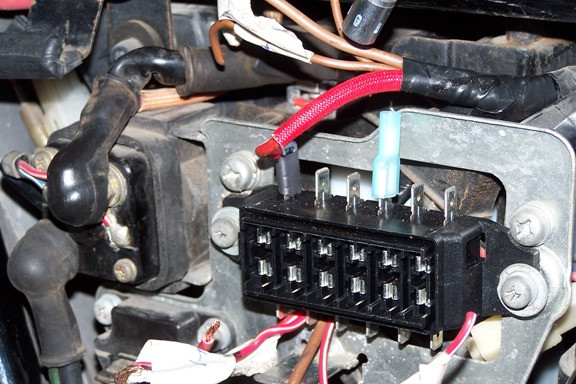

    I attached the wires using the right angle connectors recommended by Hobbyman.
    I soldered them, crimped and applied shrink tube.

    Click image for larger version

Name:	fusebox20.jpg
Views:	288
Size:	94.8 KB
ID:	861474

    Click image for larger version

Name:	fusebox21.jpg
Views:	277
Size:	96.5 KB
ID:	861475

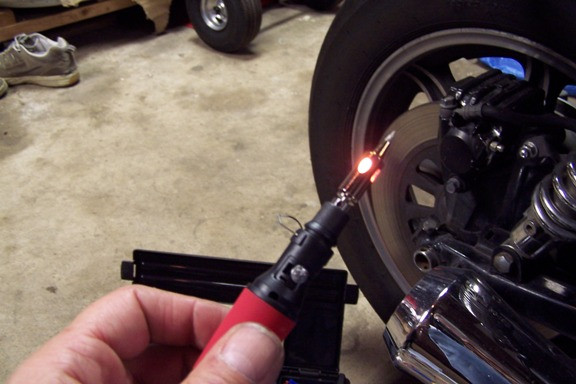

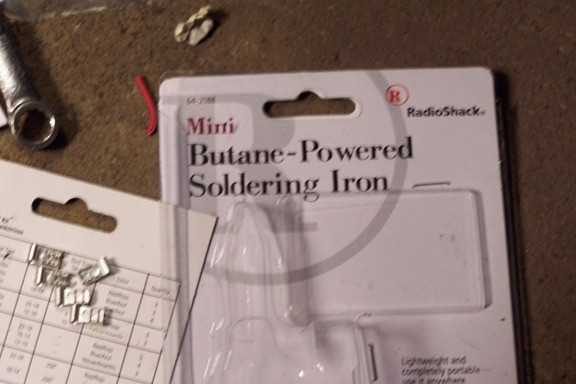

    This thing is the $hit! Runs on butane.
    It heats in about 15 seconds and includes a torch tip.
    There was a thread about traveling tools including a soldering iron. This is perfect.

    Click image for larger version

Name:	fusebox22.jpg
Views:	262
Size:	61.7 KB
ID:	861476


    From the Shack.
    You can see the connectors also from RS.

    Click image for larger version

Name:	fusebox24.jpg
Views:	250
Size:	53.5 KB
ID:	861477

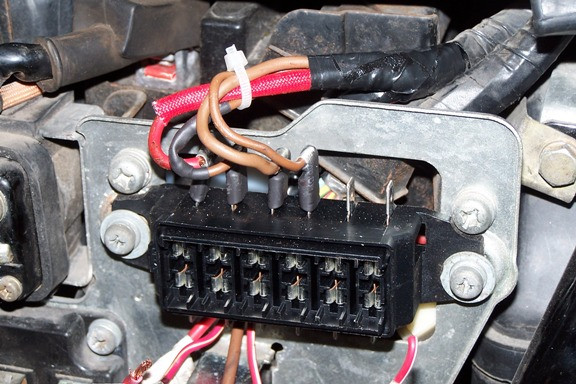

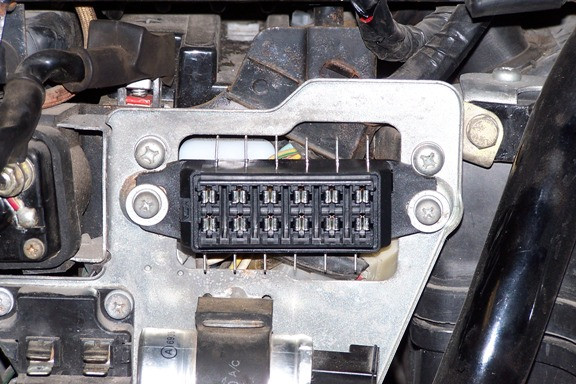

    All done.

    Click image for larger version

Name:	fusebox25.jpg
Views:	333
Size:	96.2 KB
ID:	861478
    Last edited by tplank; 11-23-2020, 08:38 PM.
    XS1100SF
    XS1100F

  • #2
    Looks great

    how much did all the parts cost you and how long did it take you to do the conversion?
    2 - 80 LGs bought one new
    81 LH
    02 FXSTB Nighttrain
    22 FLTRK Road Glide Limited
    Jim

    Comment


    • #3
      Re: Looks great

      Originally posted by cajun31
      how much did all the parts cost you and how long did it take you to do the conversion?
      I got the fuse box from TC for I think $8. The connectors and soldering iron were about $29. Just the connectors were probably $3, I dunno, I wanted a new toy.

      I could have finished it up in maybe three hours, but I wasn't in a hurry because the bike is down for parts right now.

      -------------------------------------------------------------------------------------------
      Added by T.C.:

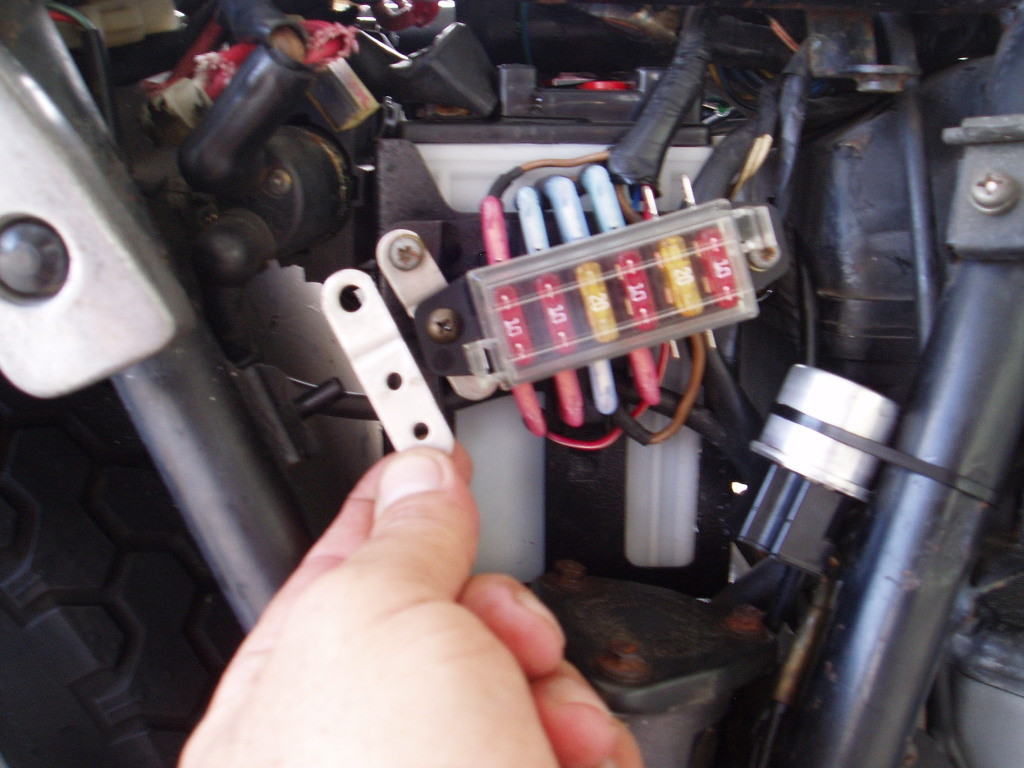

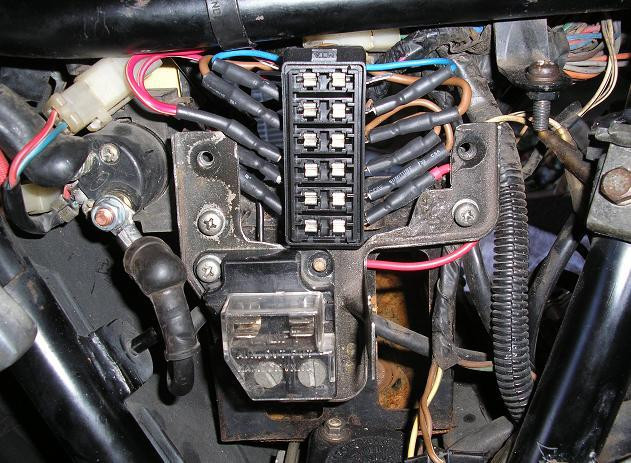

      Addendum photos of folks installing in their XJ's. The sidecover doesn't have as much room, and will hit this fuseblock if it's mounted just on top of the OEM fuseblock metal plate, so folks have had to get creative with how they mounted them, most involve either removing the backing metal plate, or cutting sections out of it so allow the fuseblock to sit deeper towards the battery so the side cover will close!

      Click image for larger version

Name:	fuseblock_bne.jpg
Views:	312
Size:	123.1 KB
ID:	861479

      Click image for larger version

Name:	fuseblock_cobia_xj.jpg
Views:	245
Size:	187.1 KB
ID:	861480
      Last edited by tplank; 11-23-2020, 08:42 PM.
