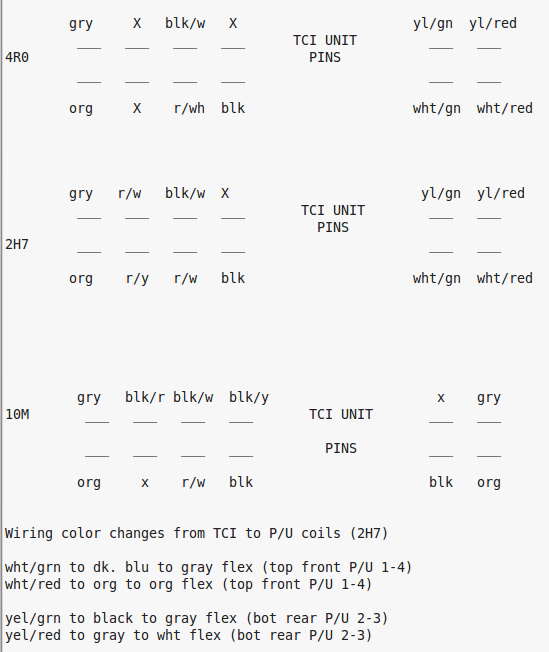

    TCI Pinouts & P/U coil wiring (2H7)

    Click image for larger version

Name:	Screenshot_2021-03-19_18-38-36.png
Views:	364
Size:	42.6 KB
ID:	863758
    2H7 (79) owned since '89
    3H3 owned since '06

    07 Triumph Tiger 1050 (night rider)

    "If it ain't broke, modify it"

  • bikerphil
    Master of XSology
    • Jan 2008
    • 8857
    • South Flori-DUH

    #2
    Maybe moderator could move this to the proper area?
    2H7 (79) owned since '89
    3H3 owned since '06

    07 Triumph Tiger 1050 (night rider)

    "If it ain't broke, modify it"

    Comment

    • scott0757
      Truly XSive
      • Jun 2007
      • 130
      • Syracuse, NY

      #3
      The colors match what I found and repaired on my 1980SG. All good now. Thank for the help. I was ok on the old XS11.com site but could not post into the electrical repair section when I tried on this one. Where should this have been posted?
      Last edited by scott0757; 10-05-2021, 10:32 AM.
      Past Rides:
      1969 OSSA 250 Pioneer
      1979 XS650 Special
      1978 Honda CB750K
      Current: 1980 XS1100SG

      Comment

      • bikerphil
        Master of XSology
        • Jan 2008
        • 8857
        • South Flori-DUH

        #4
        Not allowed to post in the tech tips, that is why I posted this in Miscellaneous.
        2H7 (79) owned since '89
        3H3 owned since '06

        07 Triumph Tiger 1050 (night rider)

        "If it ain't broke, modify it"
