    FRONT TIRE CHANGE PICTORIAL.
    "Just nice to see it in pictures!"

    by T.C."TopCat" Gresham , posted 11-12-06

    There's already a great tip about removing, mounting and balancing a tire here in this section, I just wanted to provide some photos to assist others in seeing the process! This example is of course on a Special. Not much difference for Standard Xcept that there are 2 sets of clamps for the axle, and it feeds in from the left side instead of the right side. Follow your manual for specific details, torque values, etc.!

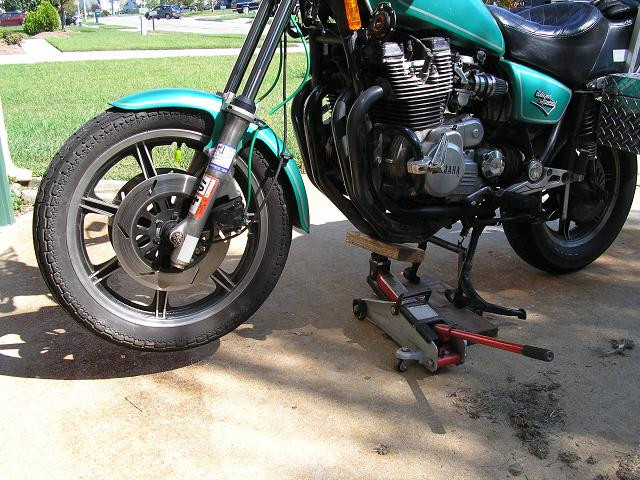

    Well, first of all, you'll need to raise the tire, front or rear. Rear is easy=center stand, front requires a little more ingenuity! I used a jack and block of wood combined with the centerstand.

    Click image for larger version  Name:	tire01raise.jpg Views:	0 Size:	128.0 KB ID:	861008


    Next, deflate the tire, either removing the valve core, or just depressing on it, but you'll want to press on the tire to get some extra air out so that it will compress/squeeze together to get it to pass by the forks. You'll want to remove the calipers first. I won't go into the minutia of steps, you know to remove axle nut cotter pin, loosen and remove castle nut, then loosen axle pinch bolt, and finally remove axle! Pay close attention to the position of the speedo gear housing and it's alignment notches!

    Click image for larger version  Name:	tire02deflate.jpg Views:	0 Size:	95.6 KB ID:	861009

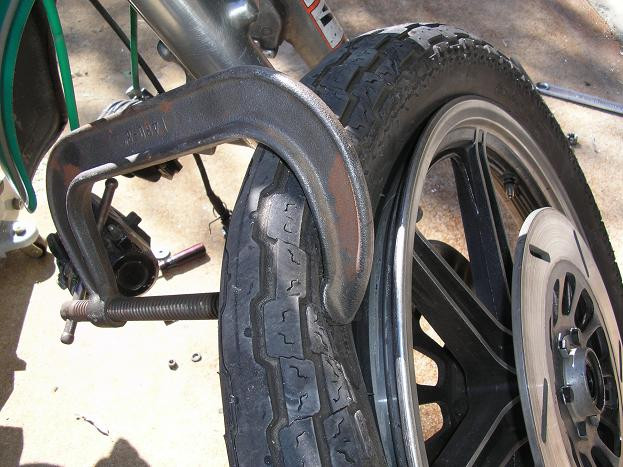

    I found a simple large C-clamp works well for bead breaking!

    Click image for larger version  Name:	tire03beadbrk.jpg Views:	0 Size:	99.4 KB ID:	861010

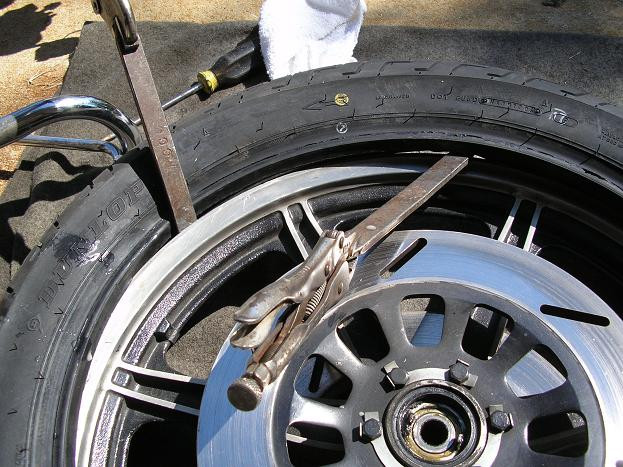

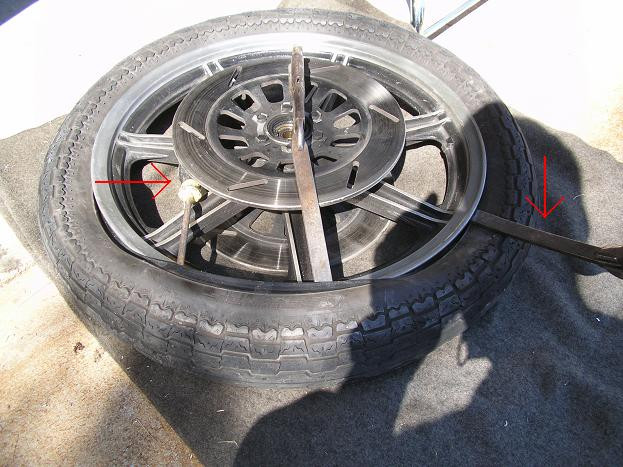

    I used standard tire irons, but attached some locking vice grips for better leverage. I also used a long wide flat screwdriver to help in holding the bead in place once you have it over the rim edge!

    Click image for larger version  Name:	tire04irons.jpg Views:	0 Size:	100.4 KB ID:	861011


    As the other tip mentioned, make sure to push the bead of the tire down into the center recess of the rim to allow more slack in the bead for easier handling!

    Click image for larger version  Name:	tire05inbead.jpg Views:	0 Size:	116.7 KB ID:	861012


    The second bead can be a little more challenging, but should also come off the same way!

    Click image for larger version  Name:	tire06bead.jpg Views:	0 Size:	97.5 KB ID:	861013

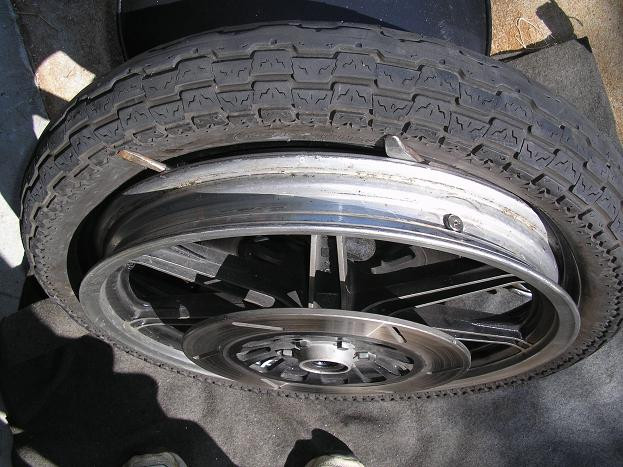

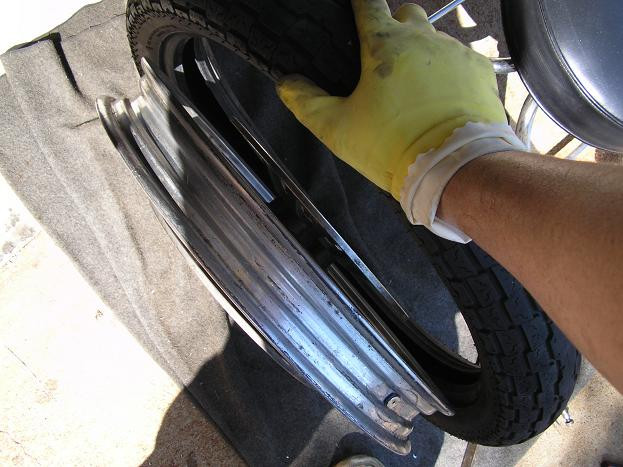

    Once you get the bead about 1/2 way around the rim, you should be able to just push the tire down and off the rim!

    Click image for larger version  Name:	tire07remove.jpg Views:	0 Size:	84.9 KB ID:	861014

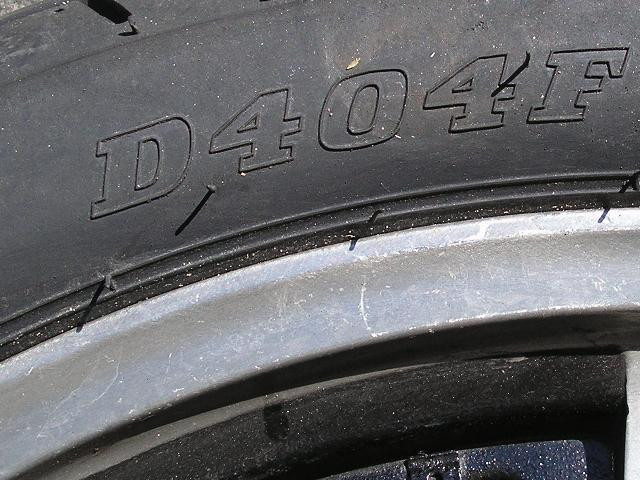

    Feel free to do any cleaning, polishing, etc., you like once you have the tire off! For putting the new tire on, first confirm that you have it positioned in the proper direction of travel, there's a direction ARROW stamped/molded into the sidewall!

    Click image for larger version  Name:	tire08arrow.jpg Views:	0 Size:	88.2 KB ID:	861015

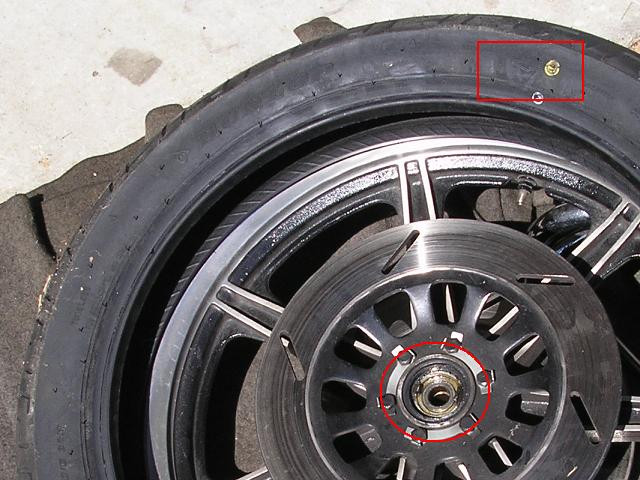

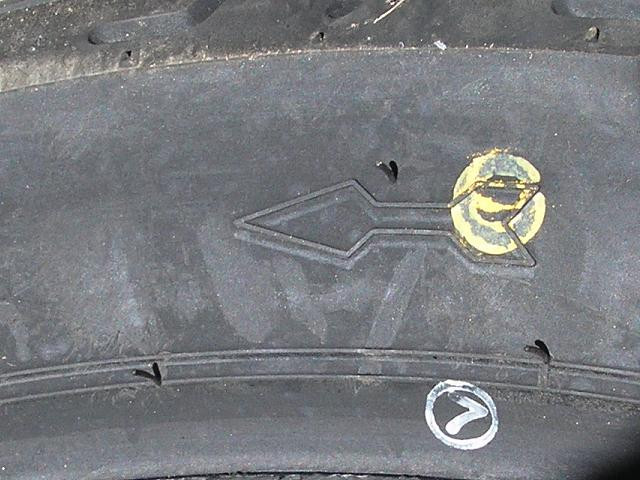

    Along with the ARROW, there is a DOT that marks where the tire should be aligned with the tire valve to make balancing easier!

    Click image for larger version  Name:	tire09match.jpg Views:	0 Size:	98.7 KB ID:	861016


    Now apply the tire mounting lubricant of your choice, and push the tire down onto the rim with a rotating motion, this will push more of the bead over the rim, then use the tire irons to pry the remaining bead over, again remembering to keep the portion already on as far towards the center recess of the rim as possible!

    Click image for larger version  Name:	tire10mount.jpg Views:	0 Size:	116.1 KB ID:	861017

    Click image for larger version  Name:	tire11mount.jpg Views:	0 Size:	75.4 KB ID:	861018




    Continued next post!
    Last edited by tplank; 11-15-2020, 10:28 PM.
    T. C. Gresham
    81SH "Godzilla" . . .1179cc super-rat.
    79SF "The Teacher" . . .basket case!
    History shows again and again,
    How nature points out the folly of men!

  • #2
    Tire Change Pictorial, Part DEUX

    TIRE CHANGE PICTORIAL.
    "Just nice to see it in pictures, PART DEUX!"

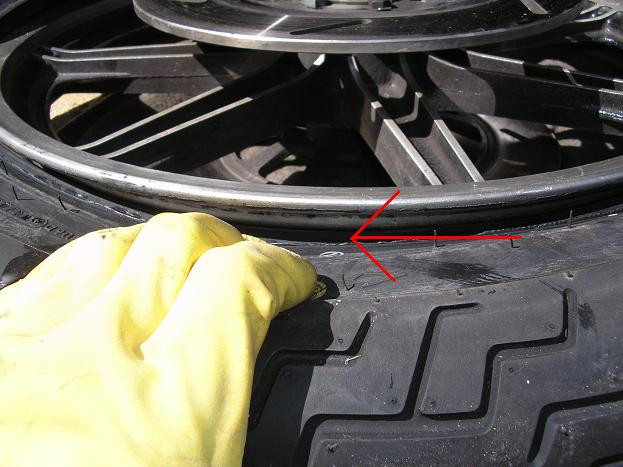

    Okay, you've got the tire on the rim, and now when you do the first inflation to seat the bead, (Don't forget your safety goggles!) you need to monitor the edge very closely. There is a small line just above the bead seal that is used as an indicator, it should be showing all the way around. Below is an example of a "bad" bead position.

    Click image for larger version

Name:	tire12badbead.jpg
Views:	67
Size:	98.2 KB
ID:	861019

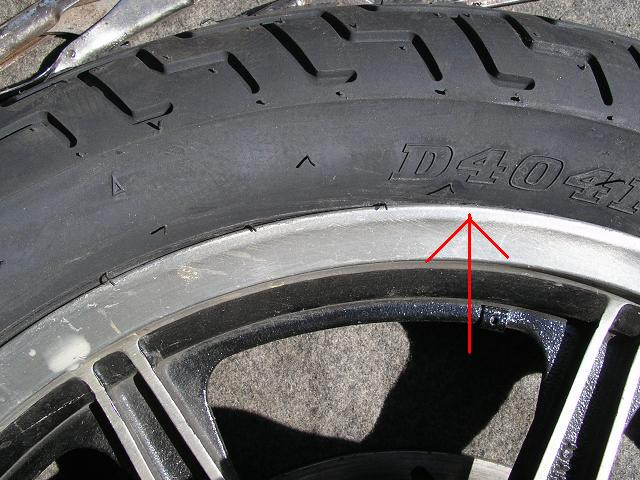

    You may need to deflate, massage, do the "Indian Tire Dance", bounce the partially inflated tire and wheel on the ground repeatedly to get the bead to rise up on the rim where it should be...see "good" bead below!

    Click image for larger version

Name:	tire13goodbead.jpg
Views:	69
Size:	97.7 KB
ID:	861020

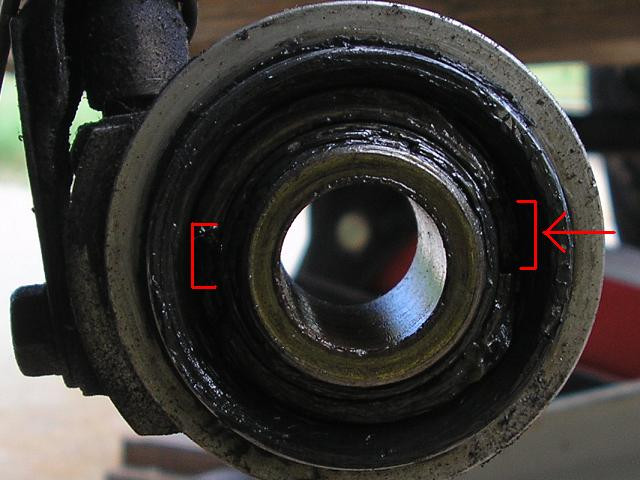

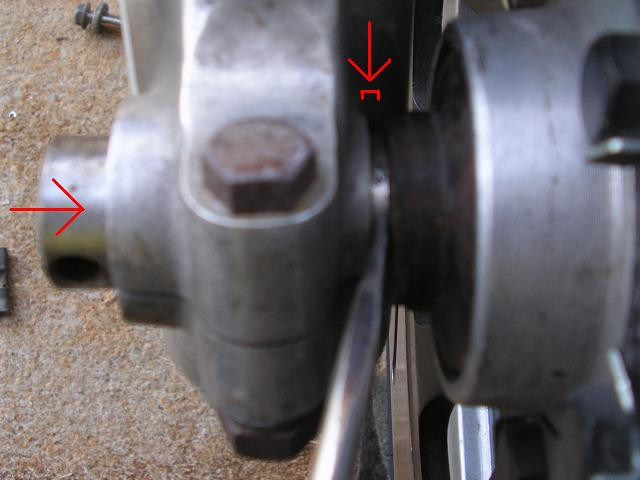

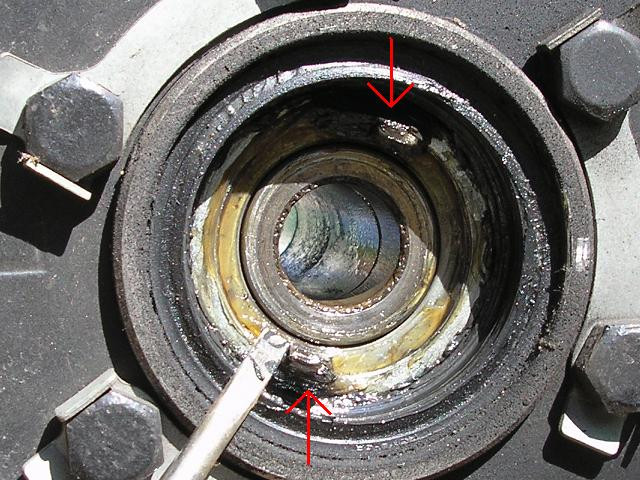

    Once you have inflated it and seated the bead properly, now deflate it! This is again to allow you to squeeze the tire to get it past the forks and calipers! This photo is a little dark, but it's the speedo drive unit, and there are 2 recesses/notches in it. These need to match up with the 2 tangs on the wheel.

    Click image for larger version

Name:	tire14notch.jpg
Views:	69
Size:	74.8 KB
ID:	861021


    Of course, clean up these contact areas, apply some grease and then you're ready to put it back together.

    Click image for larger version

Name:	tire15speedo.jpg
Views:	66
Size:	128.2 KB
ID:	861022

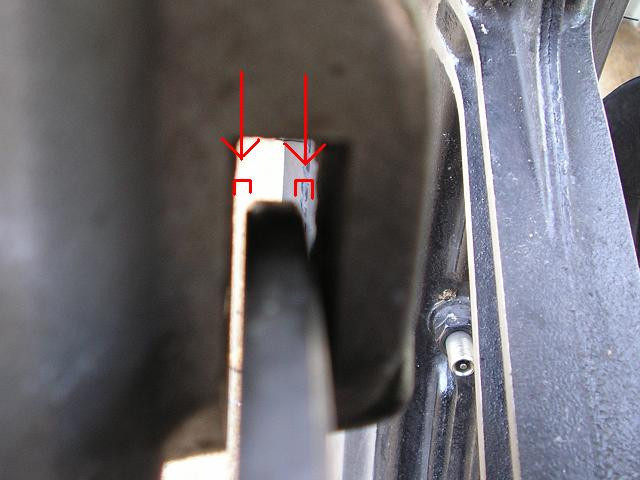

    Mesh the speedo drive to the wheel housing, and then slide the wheel into the forks, note the alignment notches and grooves on the forks and drive unit!

    Click image for larger version

Name:	tire16speedo.jpg
Views:	63
Size:	47.9 KB
ID:	861023

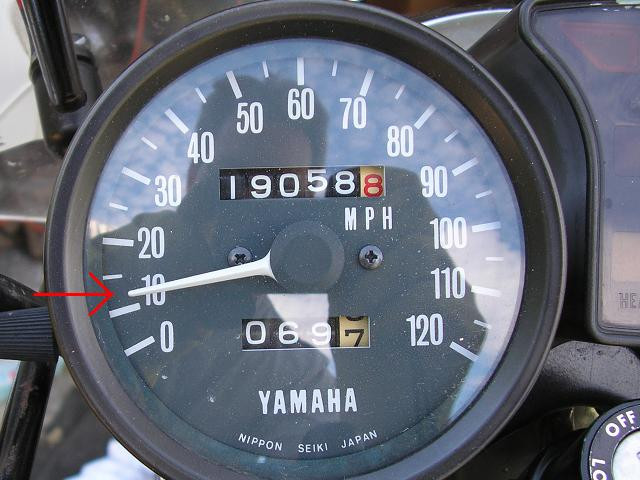

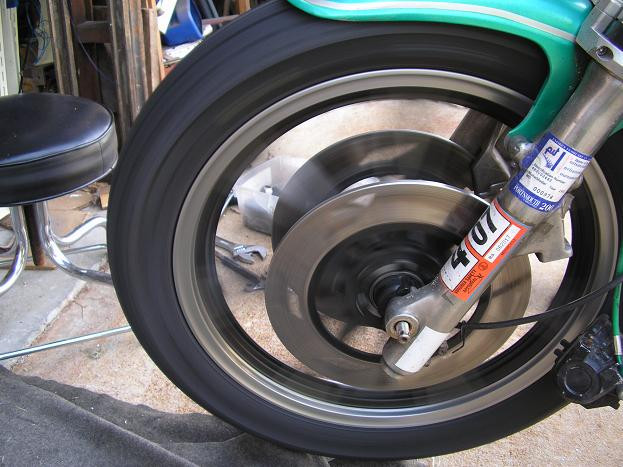

    Once you have the wheel on, the axle in place, but before you tighten everything down, spin the front wheel, get it spinning fairly fast, and then check your speedo gauge, you should be able to see it registering about 10mph or so! This will help you to determine that you have the speedo drive unit mounted properly before tightening it all up!

    Click image for larger version

Name:	tire17spin.jpg
Views:	66
Size:	92.4 KB
ID:	861024


    Yes, that's an XS650 speedo!

    Click image for larger version

Name:	tire18speedo.jpg
Views:	66
Size:	83.2 KB
ID:	861025

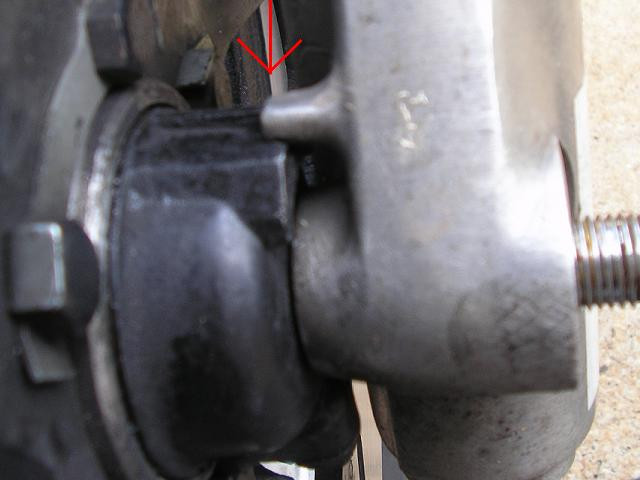

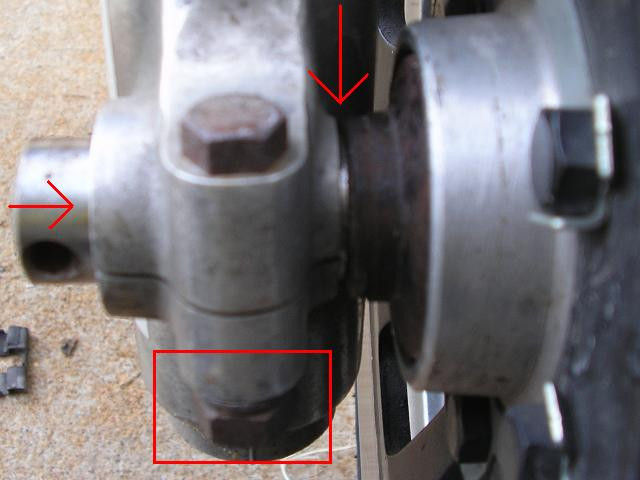

    This photo shows the brake rotor is not properly centered, and would cause rubbing!

    Click image for larger version

Name:	tire19rotor.jpg
Views:	67
Size:	56.5 KB
ID:	861026


    Adjusting the position of the axle will allow you to get the rotor centered, and then you can tighten the axle pinch bolt nut!

    Click image for larger version

Name:	tire20axel.jpg
Views:	62
Size:	56.9 KB
ID:	861027

    Click image for larger version

Name:	tire21axleadj.jpg
Views:	65
Size:	57.5 KB
ID:	861028


    Here's a fuzzy photo showing the rotor well centered in the fork guide. Now you can tighten the axle castle nut, don't forget to put the cottor pin back in.

    Click image for larger version

Name:	tire22rotor.jpg
Views:	63
Size:	62.7 KB
ID:	861029

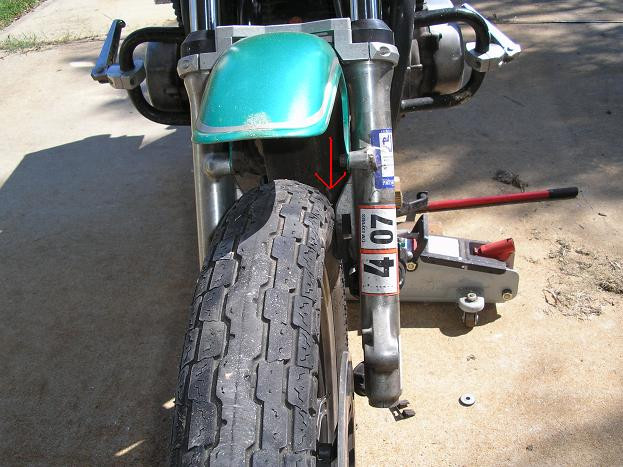

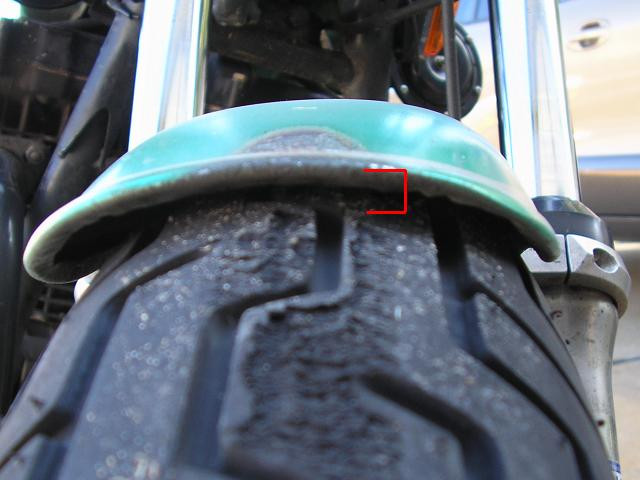

    And if you decide to go to a slightly larger tire, ie. 110/90 vs. the 100/90, just make sure you have enough clearance between the tire and the fender.....the tires DO Xpand at high speeds!!

    Click image for larger version

Name:	tire23fender.jpg
Views:	64
Size:	65.8 KB
ID:	861030


    Hope this helps someone?!
