Gear Oil Dipstick
by Doug Heinen

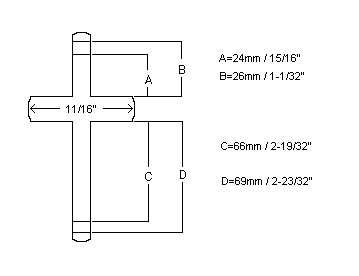

The Official Yamaha (TM) stick is put together as follows. The short end is for measuring REAR drive, and the long end is for measuring the MIDDLE drive. The two horizontal lines at each end indicate the low and and high range for oil.
Width across each end is 1/4" or 6mm
Hope this helps, best I could do with ASCII Draw.
Note added 7/30/02
by sixtysix
The original dipstick is still available and less than $5.00 at your local Yamaha dealer.....Part number for the gage is:
2H7-2815A-00-00 (Gauge, oil level)
photo added 8/12/02 by Mike Hart
Here is a photo of a dipstick available from Mike Farnworth's site under 'Goodies':
Also reference member CatatonicBug website for 10 printable, disposable dipsticks
by Doug Heinen
The Official Yamaha (TM) stick is put together as follows. The short end is for measuring REAR drive, and the long end is for measuring the MIDDLE drive. The two horizontal lines at each end indicate the low and and high range for oil.
Width across each end is 1/4" or 6mm
Hope this helps, best I could do with ASCII Draw.
Note added 7/30/02
by sixtysix
The original dipstick is still available and less than $5.00 at your local Yamaha dealer.....Part number for the gage is:
2H7-2815A-00-00 (Gauge, oil level)
photo added 8/12/02 by Mike Hart

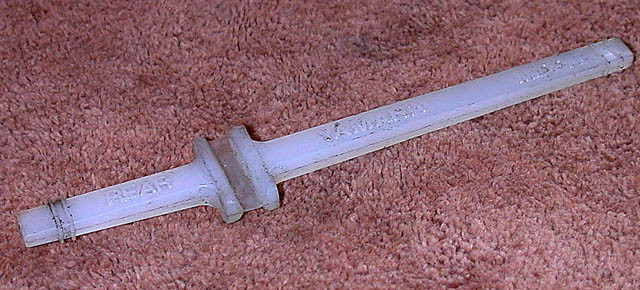

Here is a photo of a dipstick available from Mike Farnworth's site under 'Goodies':
Also reference member CatatonicBug website for 10 printable, disposable dipsticks
