    Common Spark Plug Conditions

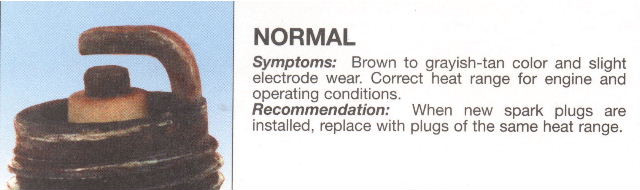

    Click image for larger version Name: 20020915-plug_normal.jpg Views: 192 Size: 36.4 KB ID: 860302

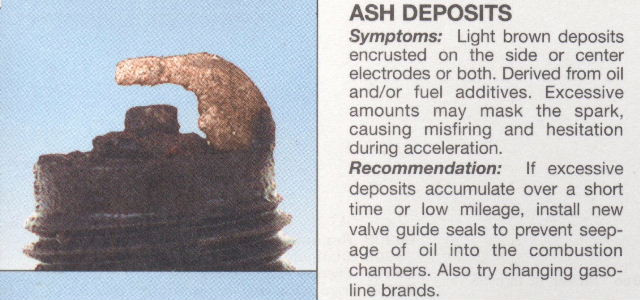

    Click image for larger version Name: 20020915-plug_ash_deposits.jpg Views: 166 Size: 69.8 KB ID: 860303

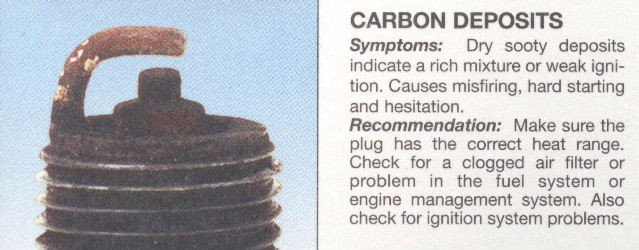

    Click image for larger version Name: 20020915-plug_carbon_deposits.jpg Views: 273 Size: 57.5 KB ID: 860304

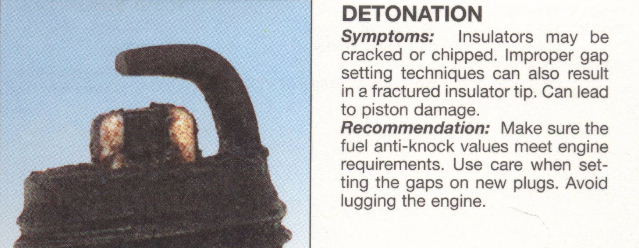

    Click image for larger version Name: 20020915-plug_detonation.jpg Views: 186 Size: 53.8 KB ID: 860305

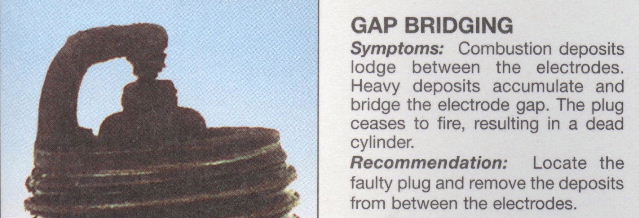

    Click image for larger version Name: 20020915-plug_gap_bridging.jpg Views: 156 Size: 49.0 KB ID: 860306

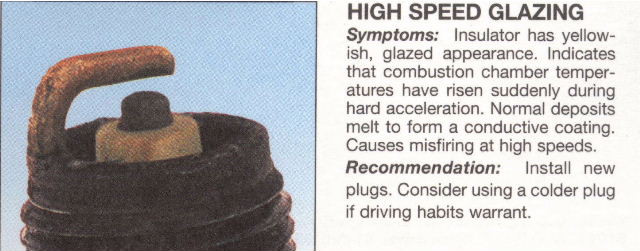

    Click image for larger version Name: 20020915-plug_high_speed_glazing.jpg Views: 247 Size: 60.0 KB ID: 860307

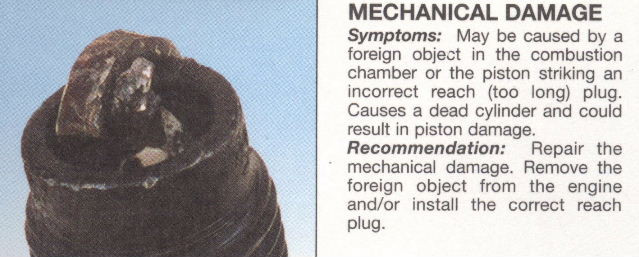

    Click image for larger version Name: 20020915-plug_mechanical_damage.jpg Views: 157 Size: 59.8 KB ID: 860308

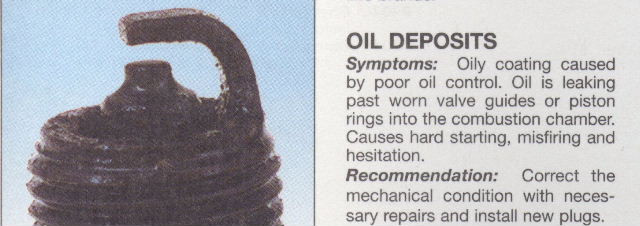

    Click image for larger version Name: 20020915-plug_oil_deposits.jpg Views: 211 Size: 49.5 KB ID: 860309

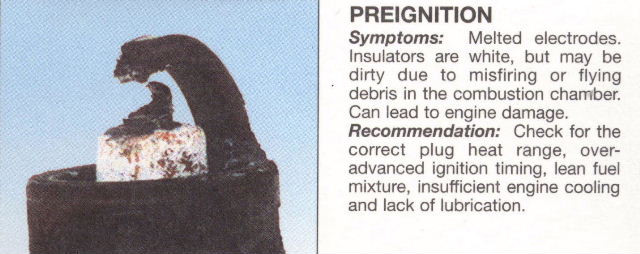

    Click image for larger version Name: 20020915-plug_preignition.jpg Views: 159 Size: 57.8 KB ID: 860310

    Click image for larger version Name: 20020915-plug_too_hot.jpg Views: 171 Size: 57.4 KB ID: 860311

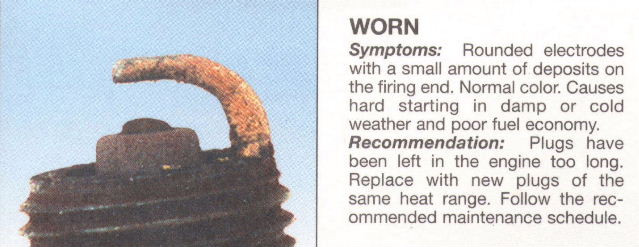

    Click image for larger version Name: 20020915-plug_worn.jpg Views: 168 Size: 54.9 KB ID: 860312





    ---------------------------------------------------------------------------

    Addendum: check out Dans MC Spark Plug chart provided by NGK for further diagnostic help!
