    I find the parts diagrams are all fuzzy. Is there a clear one avaialble to see the order or sequence of parts in the rear MC rebuild?

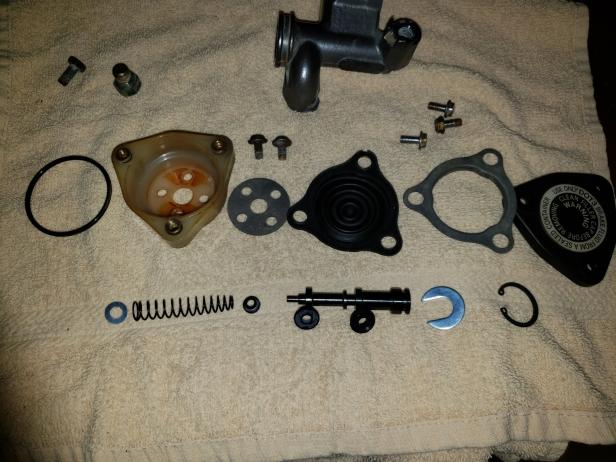

    See my proposed order / sequence.

    1. Does the little washer on the bottom left of picture go there or sonewhere else?
    2. Does anyone know which rubber seal goes on where? (They are not the same - my guess is the thicker one goes on first so it ends up in the middle of the plunger.
    3. The Spring goes on with the tapered end against the plunger?

    Click image for larger version

Name:	Rear Brake rebuild order of parts.jpg
Views:	77
Size:	49.9 KB
ID:	859706



    Think I got the resevoir parts in order.

    Thanks

    '78 XS1100E (the newest bike I've ever owned)
    '74 CB350F1 (under restoration)
    '72 RT2 MX360 (gone but not forgotten)

  • #2
    Ok, this is the order left to right...

    spring/cupped washer/smaller rubber seal/thin washer/plunger rod/larger rubber seal. Both rubber seals have the cupped end facing towards the fluid side of the plunger rod.

    That little washer goes behind the end smaller rubber seal by the plunger rod.
    Last edited by bikerphil; 10-06-2020, 03:53 PM.
    2H7 (79)
    3H3

    Comment


    • #3
      Thanks Bikerphil.

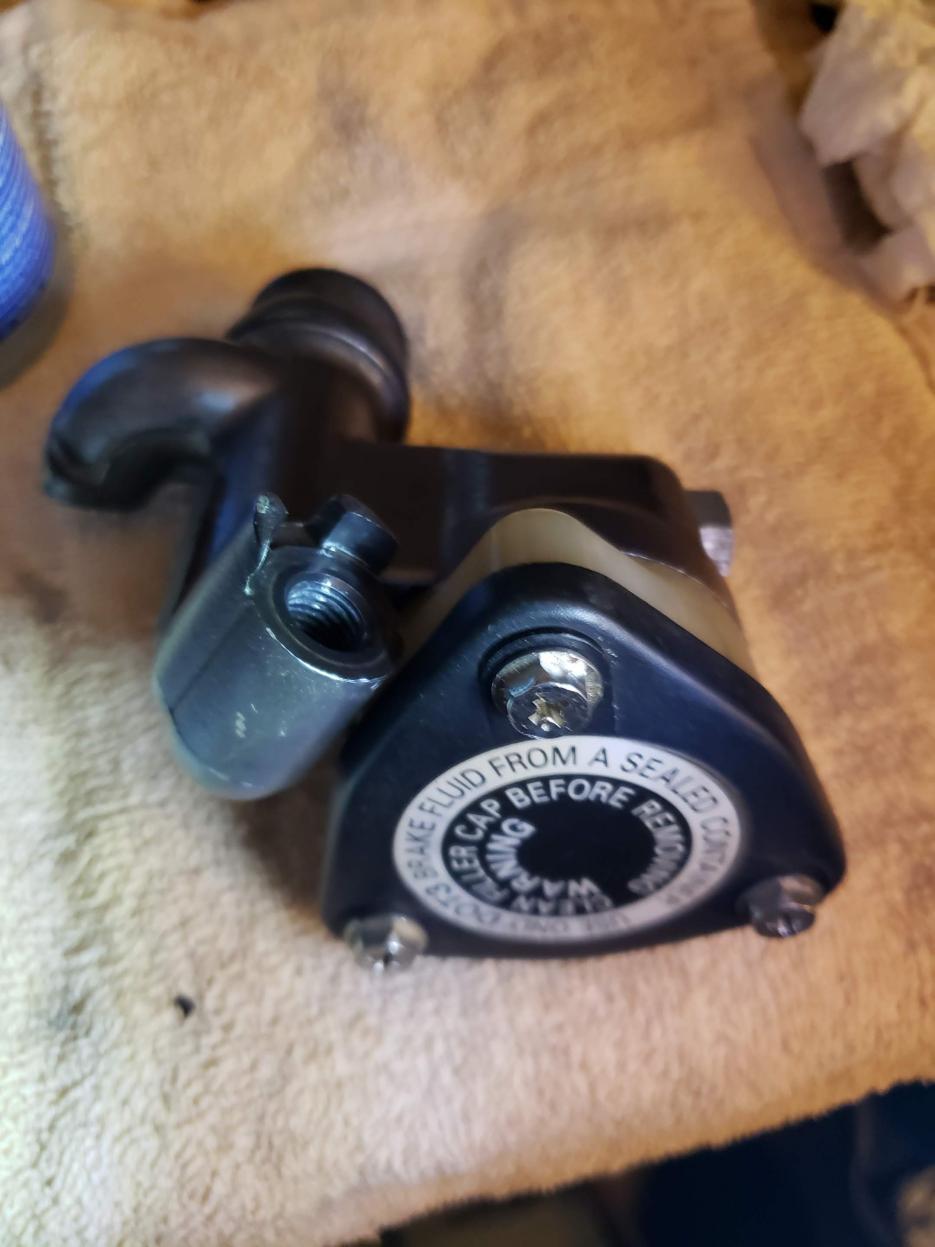

      Click image for larger version

Name:	Rear MC Rebuilt.jpg
Views:	37
Size:	85.3 KB
ID:	859830
      '78 XS1100E (the newest bike I've ever owned)
      '74 CB350F1 (under restoration)
      '72 RT2 MX360 (gone but not forgotten)

      Comment


      • #4
        You bet, the unit looks great now, like new.
        2H7 (79)
        3H3

        Comment


        • #5
          Can I send you mine? jk. Good job.
          79 F full cruiser, stainless brake lines, spade fuses, Accel coils, modded air box w/larger velocity stacks, 750 FD.
          79 SF parts bike.
          guns, beer and bikes
          what more could you ask for.
