    1979 1100SF grab bar measurements

    Can anybody who has one let me know the measurements of the grab bar of a '79 SF please.

    Struggling to find one, reading that lots of other people are searching for the same unicorn, wondering if it might be easier just to get one made.
  • 2WheelFun
    XStremely XSive
    • Aug 2020
    • 266
    • Pittsburgh PA

    #2
    There are a lot of angles on this thing. I can get you whatever dimensions you like but finding one for sale would be the best option.
    1979 XS1100 Special
    1980 XS1100 Std parts bucket
    1987 ZL1000 Eliminator
    1976 XS750D Project in waiting

    Comment

    • EvelKeevil
      XSive
      • Aug 2021
      • 47
      • Keevil, Wiltshire, England

      #3
      I realise. The measurements to the brackets is really what I'm after. If I have a custom one made it won't necessarily precisely mimic the original and I will keep looking for an original in any case.

      Comment

      • 2WheelFun
        XStremely XSive
        • Aug 2020
        • 266
        • Pittsburgh PA

        #4

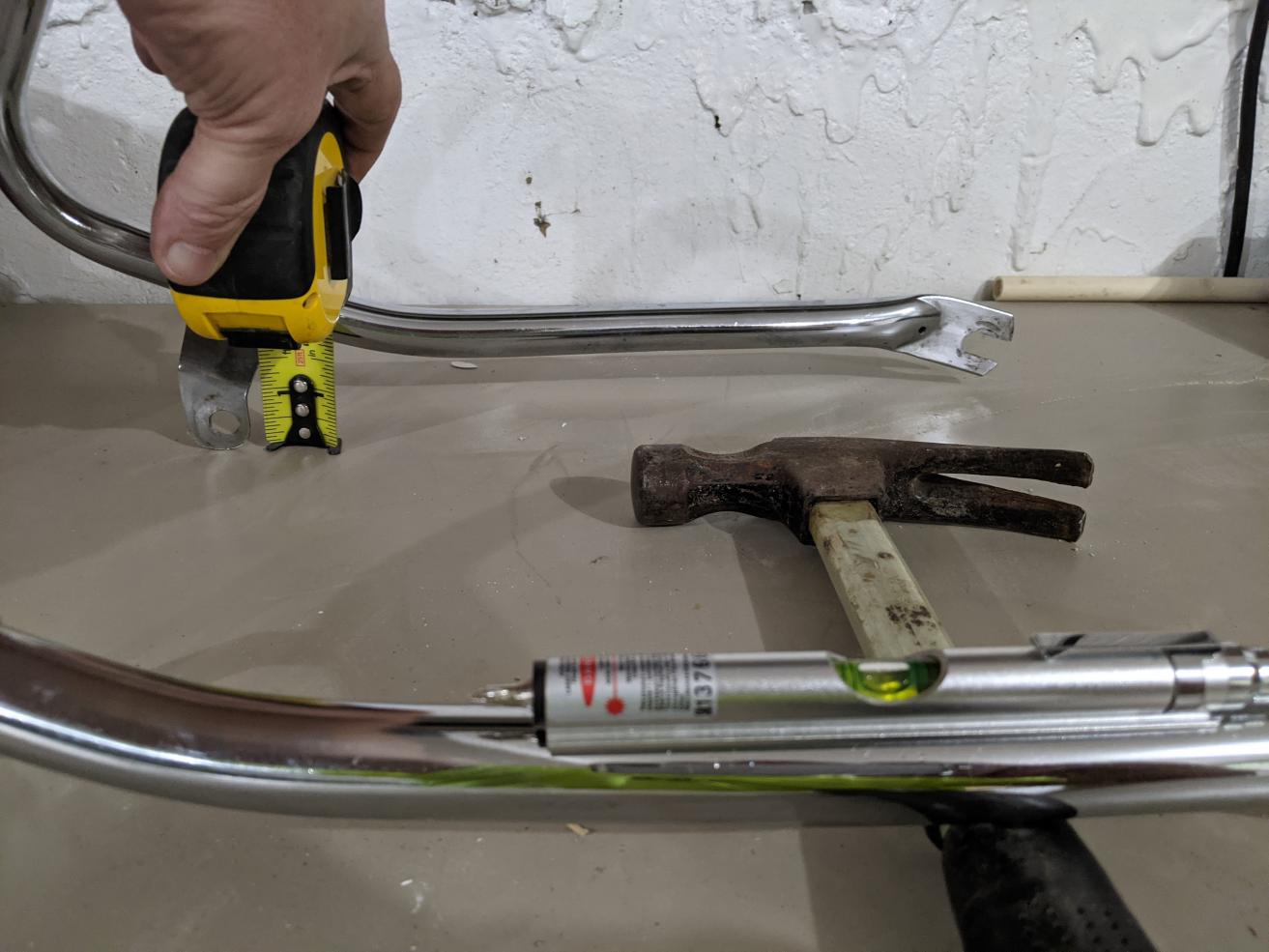

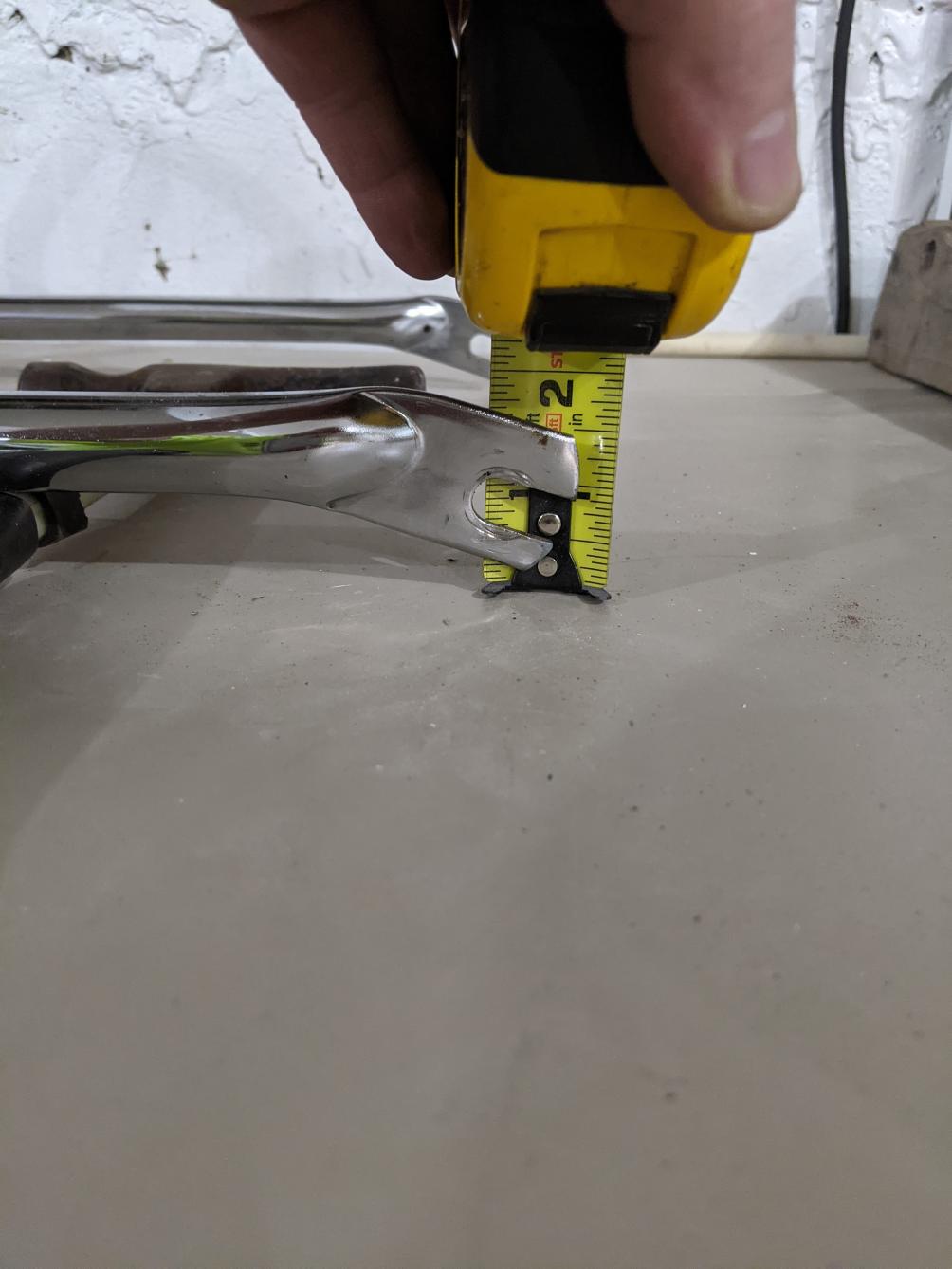

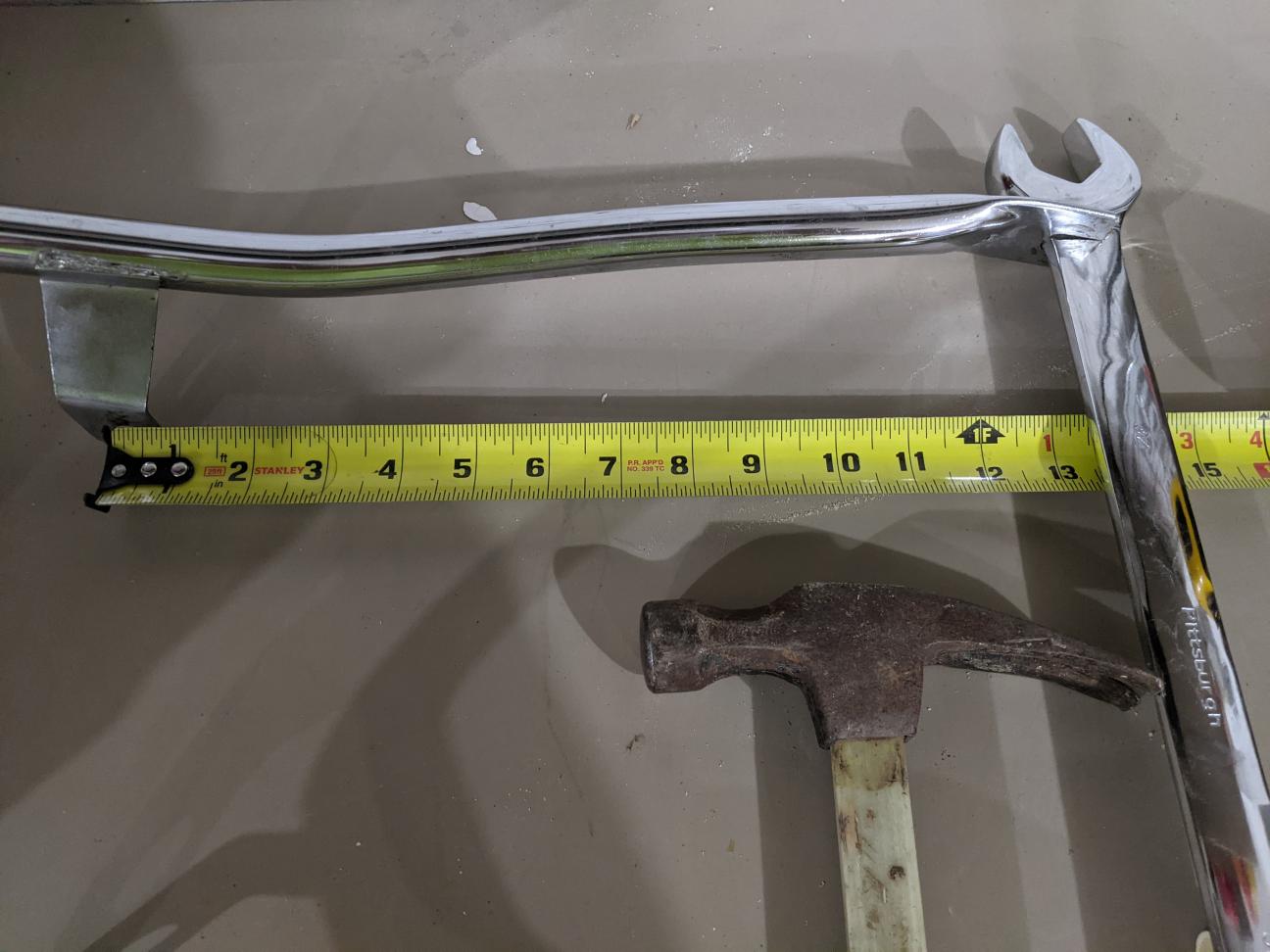

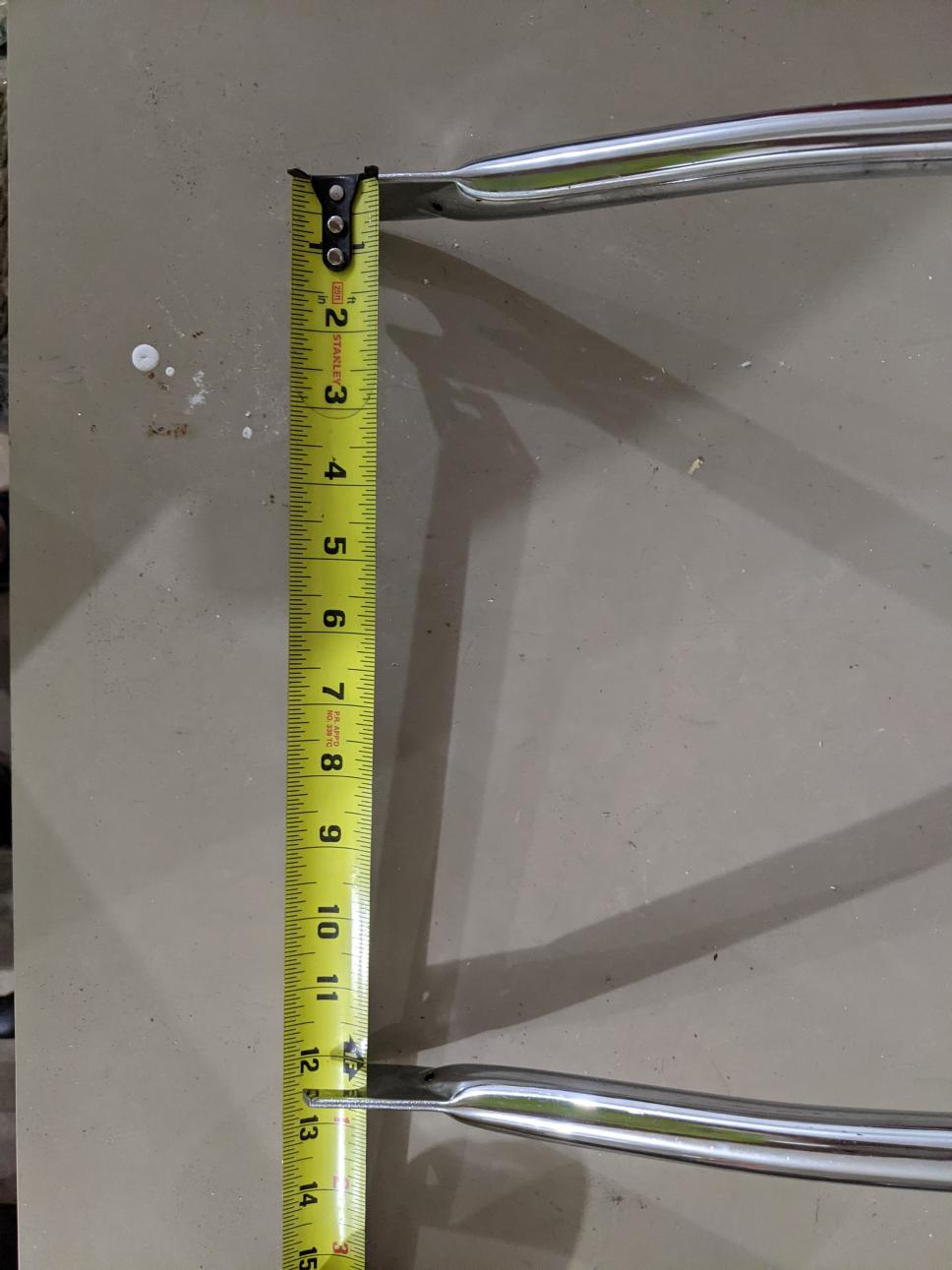

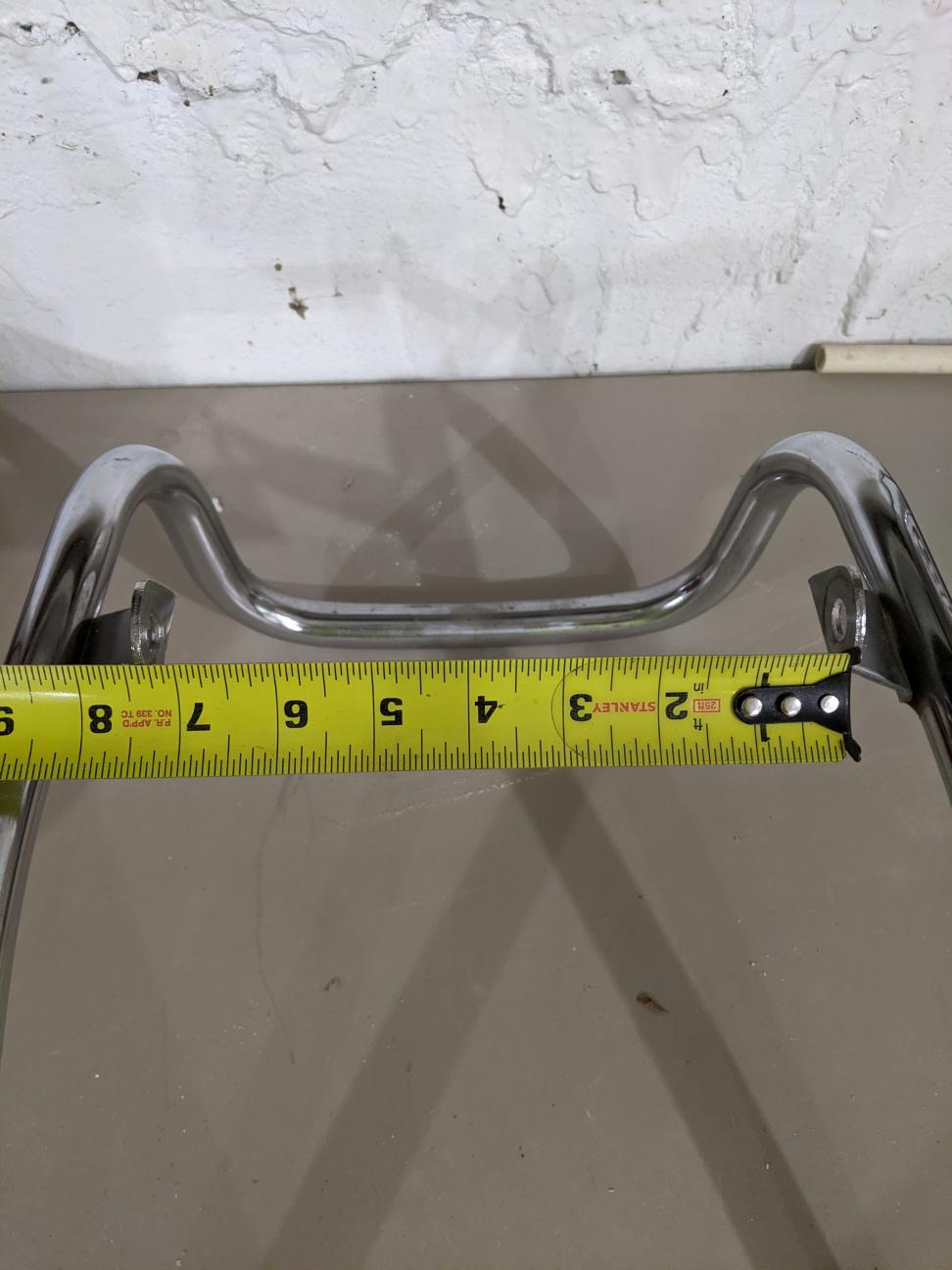

        Here you go. 12.25" inside front slots. 7 1/4" inside rear slots. With the bar level the cl of the back of the slot on front of grab bar (close to where it was bolted according to ghost marks) 15/16" off desk. Cl of rear hole 7/16" off desk. 13 3/8" cl/cl hole to end of slot. Click image for larger version

Name:	PXL_20210915_211205871.jpg
Views:	170
Size:	79.3 KB
ID:	866471 Click image for larger version

Name:	PXL_20210915_211226344.jpg
Views:	174
Size:	112.2 KB
ID:	866472 Click image for larger version

Name:	PXL_20210915_210756825.jpg
Views:	172
Size:	88.5 KB
ID:	866473 Click image for larger version

Name:	PXL_20210915_210820462.jpg
Views:	177
Size:	95.8 KB
ID:	866474 Click image for larger version

Name:	PXL_20210915_212241793.jpg
Views:	171
Size:	102.9 KB
ID:	866475
        1979 XS1100 Special
        1980 XS1100 Std parts bucket
        1987 ZL1000 Eliminator
        1976 XS750D Project in waiting

        Comment

        • 2WheelFun
          XStremely XSive
          • Aug 2020
          • 266
          • Pittsburgh PA

          #5
          Sorry I can't let this one go, my bike is a low mileage original and I'd like to keep all the parts together even though I've got it set up for a trunk currently.



          Maybe you can see if a freebie 650 rail will work if the guy is willing to ship it overseas. He apparently is giving stuff away.
          1979 XS1100 Special
          1980 XS1100 Std parts bucket
          1987 ZL1000 Eliminator
          1976 XS750D Project in waiting

          Comment

          • EvelKeevil
            XSive
            • Aug 2021
            • 47
            • Keevil, Wiltshire, England

            #6
            Originally posted by 2WheelFun
            Here you go. 12.25" inside front slots. 7 1/4" inside rear slots. With the bar level the cl of the back of the slot on front of grab bar (close to where it was bolted according to ghost marks) 15/16" off desk. Cl of rear hole 7/16" off desk. 13 3/8" cl/cl hole to end of slot. Click image for larger version

Name:	PXL_20210915_211205871.jpg
Views:	170
Size:	79.3 KB
ID:	866471 Click image for larger version

Name:	PXL_20210915_211226344.jpg
Views:	174
Size:	112.2 KB
ID:	866472 Click image for larger version

Name:	PXL_20210915_210756825.jpg
Views:	172
Size:	88.5 KB
ID:	866473 Click image for larger version

Name:	PXL_20210915_210820462.jpg
Views:	177
Size:	95.8 KB
ID:	866474 Click image for larger version

Name:	PXL_20210915_212241793.jpg
Views:	171
Size:	102.9 KB
ID:	866475
            Thank you, I'm extremely grateful for this.

            Comment

            • 2WheelFun
              XStremely XSive
              • Aug 2020
              • 266
              • Pittsburgh PA

              #7
              Your welcome, it was no big deal. If you need any more, please let me know. K&G made universal racks and backrests for years, maybe you can find one and take the saw to it to build what you want.
              1979 XS1100 Special
              1980 XS1100 Std parts bucket
              1987 ZL1000 Eliminator
              1976 XS750D Project in waiting

              Comment

              • NitaAlexis
                New
                • Dec 2021
                • 1

                #8
                Quite an amazing discovery. But I tend to think that the difference is quite negligible.
