A picture would help me

[cnap504]

Does anyone have or can take and post a picture of the fuse box on a XS750. Mine is missing (just 4 inline fuses no box) and I have figured out where it goes but don’t know which side the harness and plug should go. Thanks in advance

[Radioguylogs]

The wires break out of the fusebox toward the right side of the bike. It can be confusing because the in-mold label on the fusebox might seem like it is upside down

I will probably be able to take a picture later today if I go the barn. It's a few miles away.

[Radioguylogs]

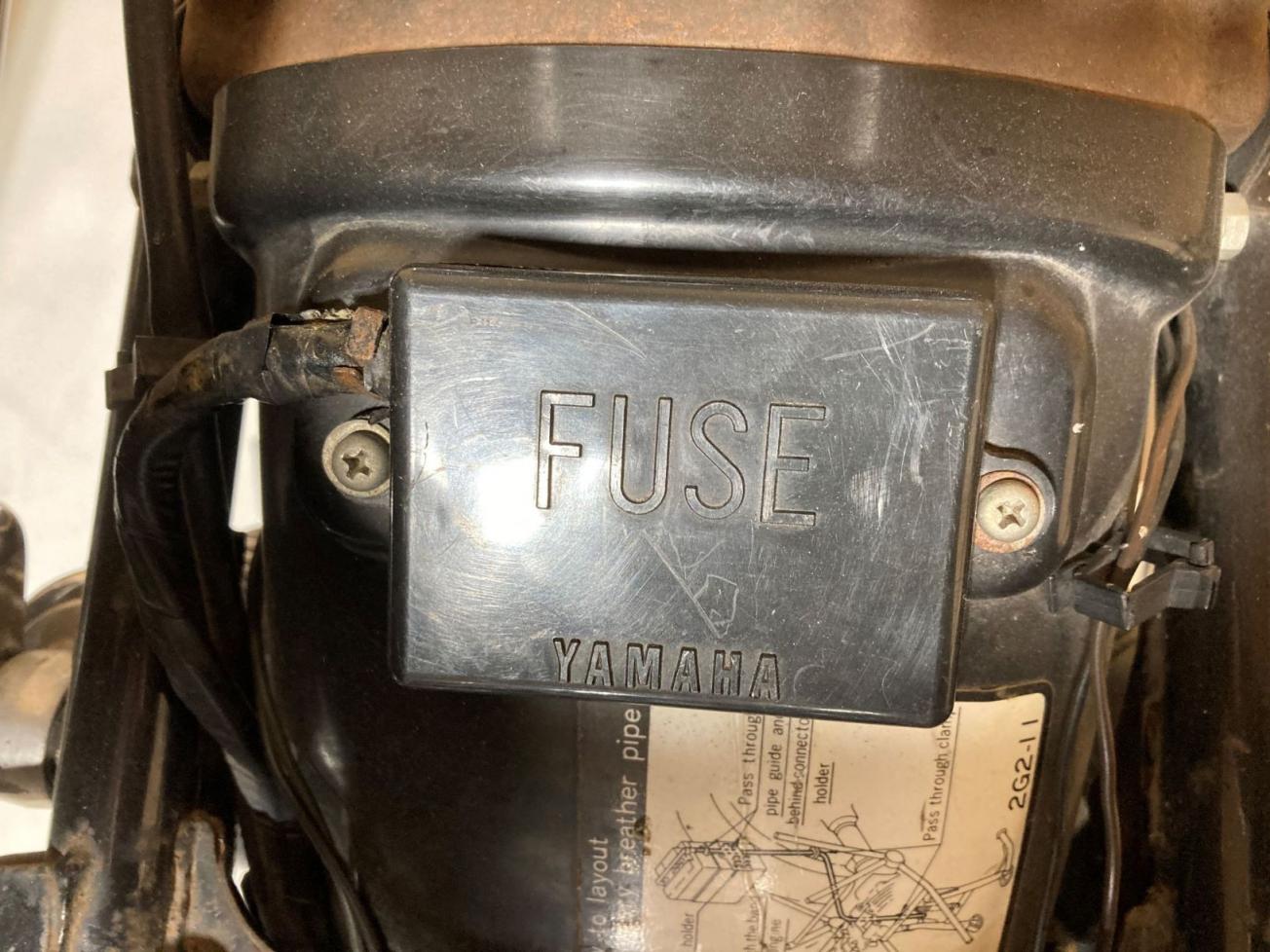

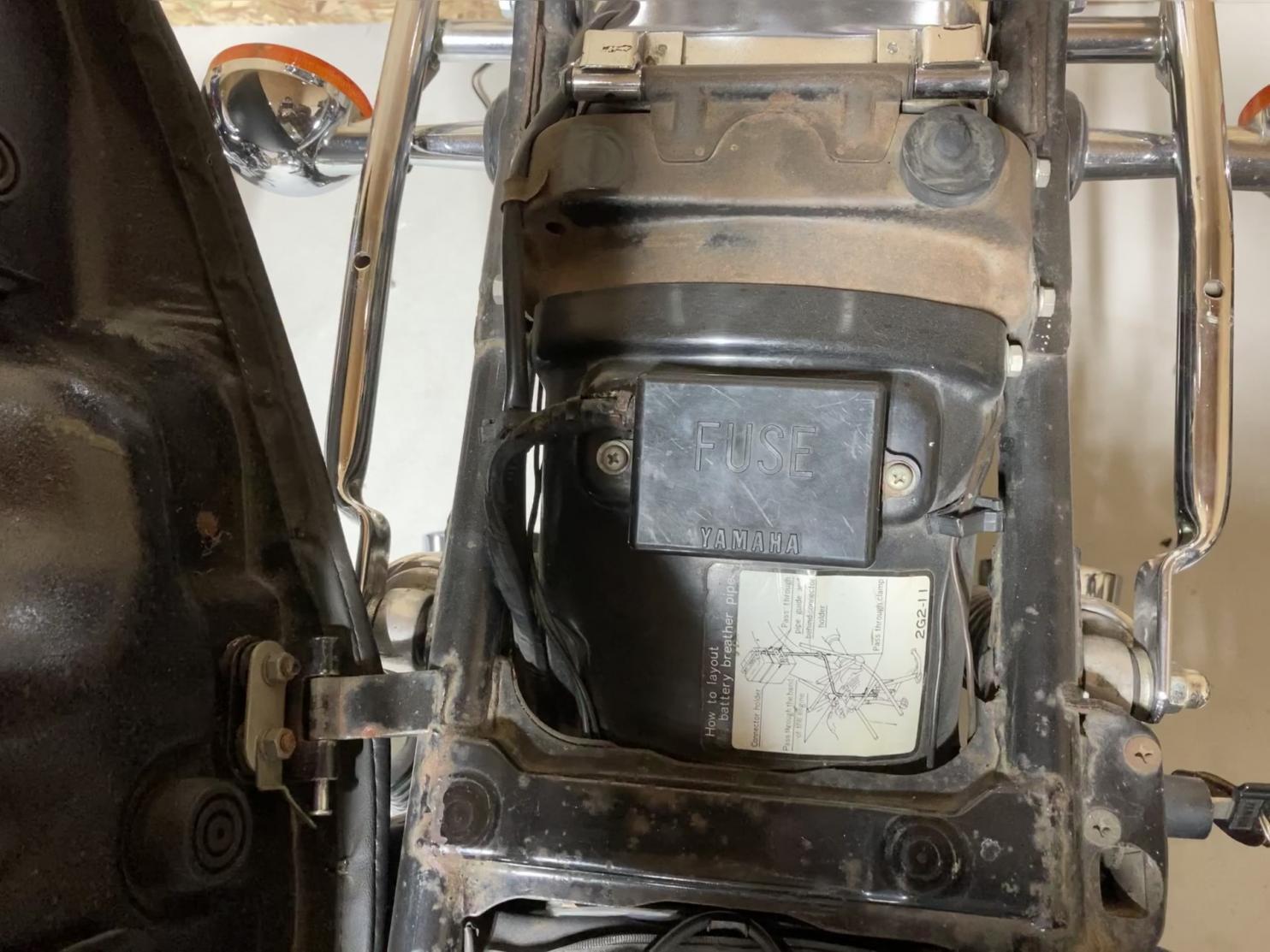

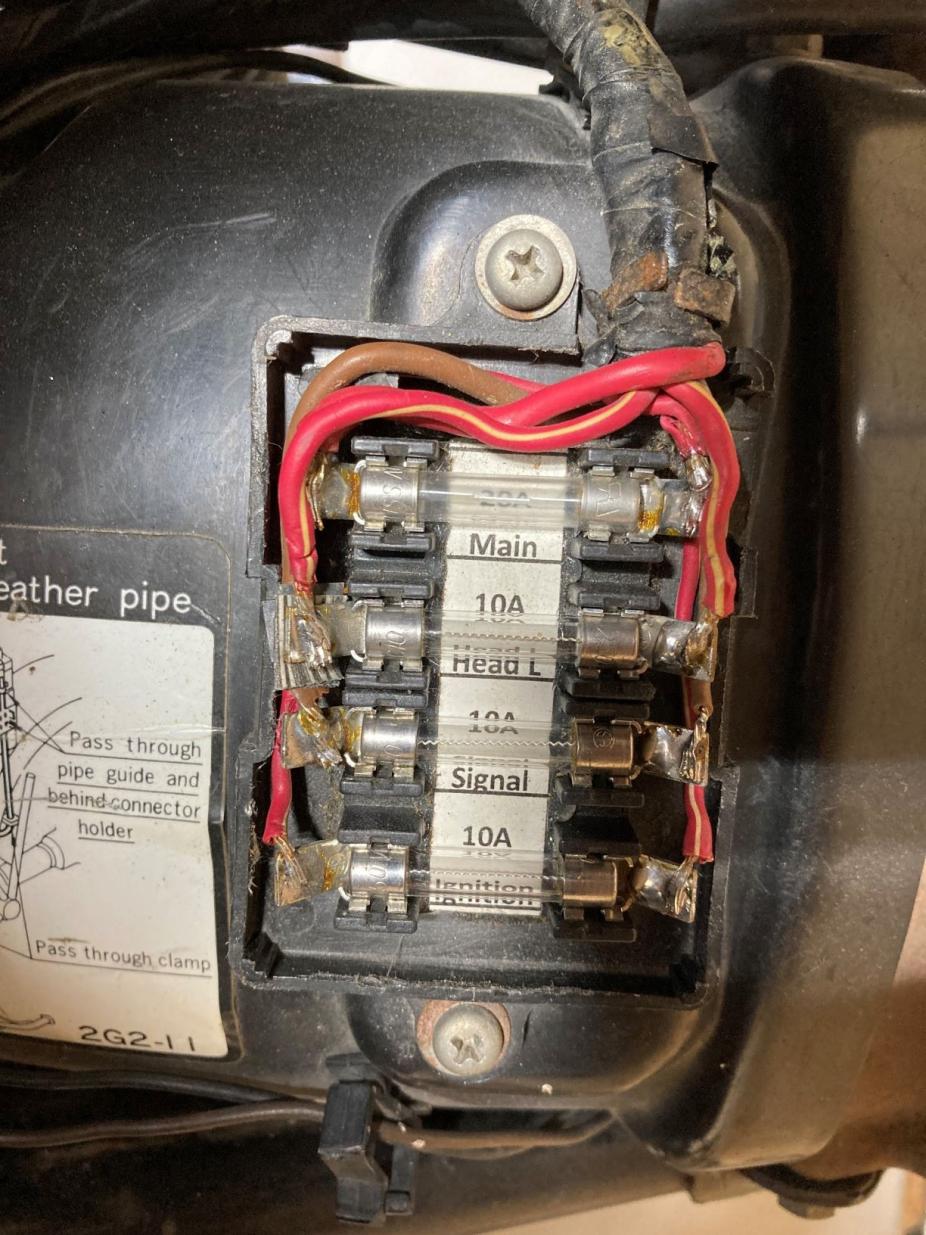

I have rebuilt this XS750SF fusebox twice, and it's not that pretty to look at. Here are a few pictures:

[cnap504]

Thanks Mike, that’s what I needed

[cajun31]

Thanks Mike, that’s what I needed

did you upgrade the fuses?

[cajun31]

what I meant was are you upgrading to a mini blade fuse box?

[cnap504]

I didn’t go to a blade fuse box, I was looking for the location and harness direction for the original.
